Watertight joint profiles

Here you will find suitable formed parts, fitting examples, floor-wall connections and mounting options.

Category

Joint width
bis maximal mm

Profile height
mm
mm

Movement

horizontal (total)

at least mm

vertical (total)

at least mm

visible grid width
mm
mm

requirements

type of floorcovering

Application
Loading...
P-SAC 02/5.1/23-024-2
VA.8.95/..
Watertight joint profiles
Movement horizontal:
40 mm (±20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
95 mm
Maximal joint width:
60 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
P-SAC 02/5.1/23-024-2
VA.8.115/..
Watertight joint profiles
Movement horizontal:
60 mm (-25/+35 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
115 mm
Maximal joint width:
80 mm
Load rating:
wheel load 3500 kg up to Ø 150 mm, B = 100 mm
P-SAC 02/5.1/23-024-2
VA.8.135/..
Watertight joint profiles
Movement horizontal:
80 mm (-30/+50 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
135 mm
Maximal joint width:
100 mm
P-SAC 02/5.1/23-024-2
VA.8.110/..
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm

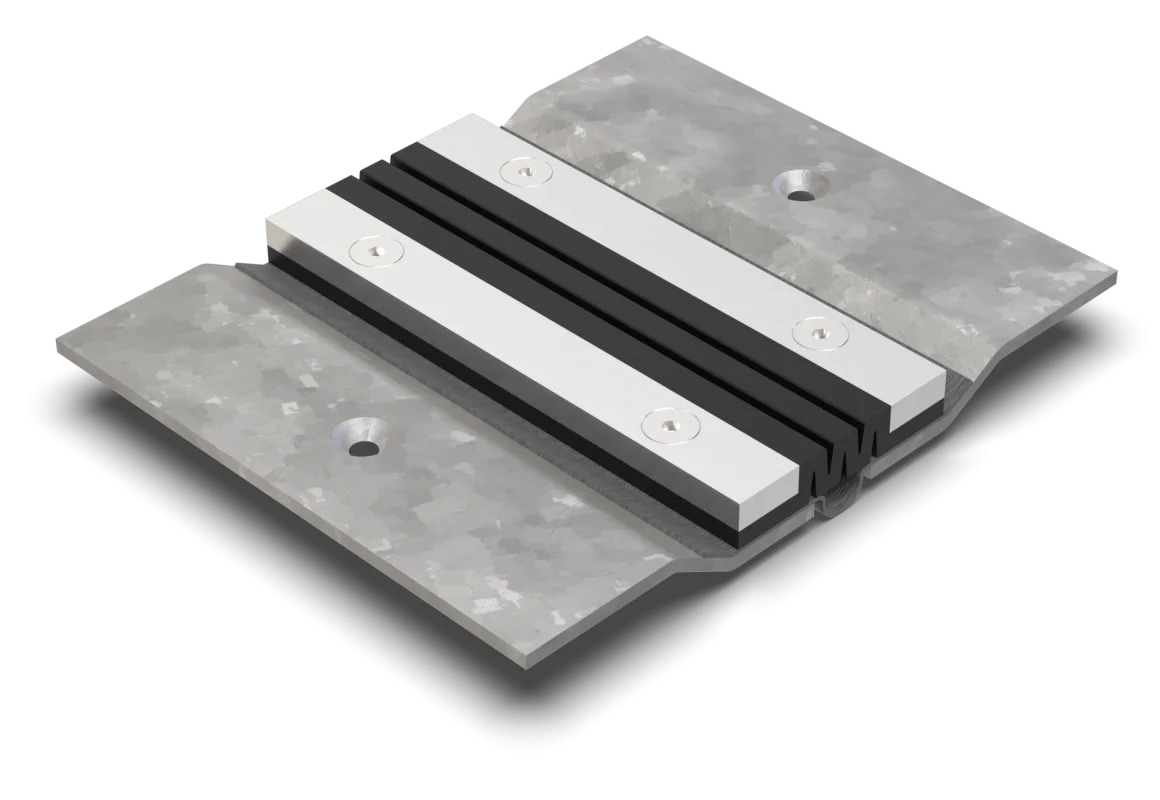

VA.8.110/27
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
P-SAC 02/5.1/23-024-2
VA.8.130/..
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
128 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm

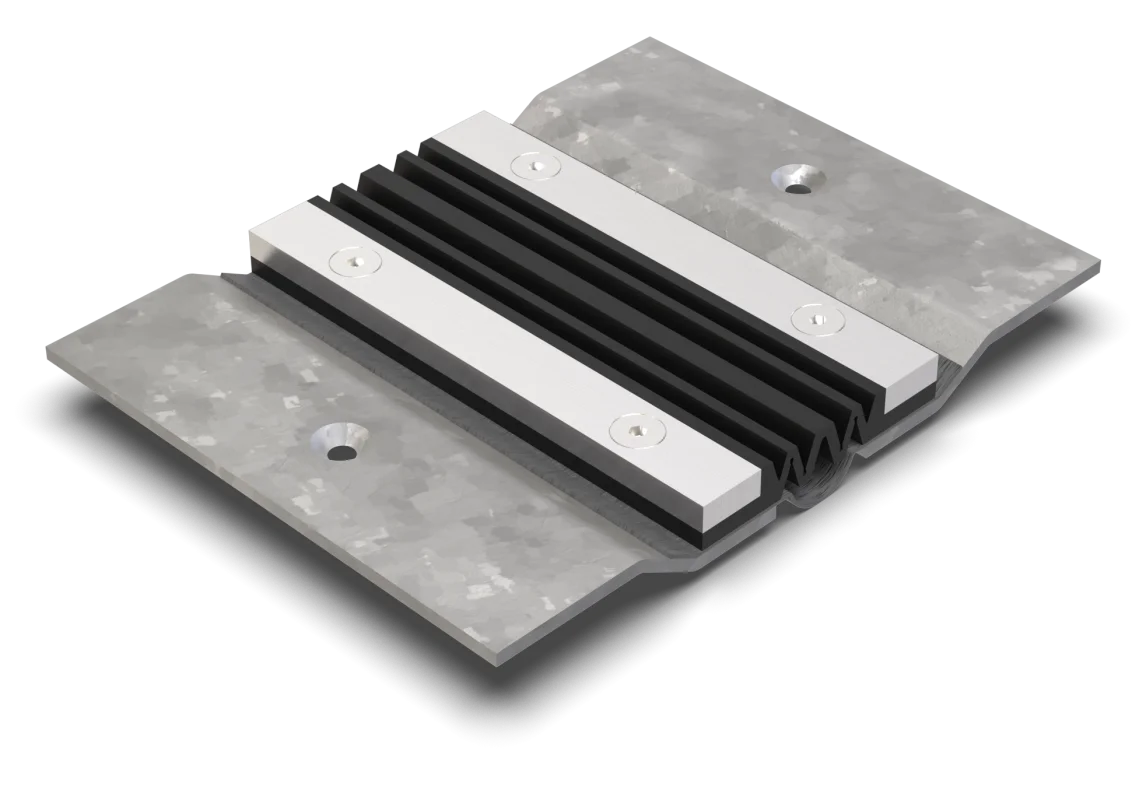

VA.8.130/27
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
128 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.8.196/..
Watertight joint profiles
Movement horizontal:
100 mm (-40/+60 mm)
Movement vertical:
50 mm (±25 mm)
Visible width:
196 mm
Maximal joint width:
100 mm
VA.8.60/.. G
Watertight joint profiles
Movement horizontal:
6 mm (±3 mm)
Movement vertical:
4 mm (±2 mm)
Visible width:
60 mm
Maximal joint width:
20 mm
Load rating:
wheel load 2500 kg up to Ø 150 mm, B = 100 mm
VA.8.95/.. G
Watertight joint profiles
Movement horizontal:
20 mm (±10 mm)
Movement vertical:
10 mm (±5 mm)
Visible width:
95 mm
Maximal joint width:
60 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
VA.8.110/.. G
Watertight joint profiles
Movement horizontal:
20 mm (±10 mm)
Movement vertical:
10 mm (±5 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.9.108/..
Watertight joint profiles
Movement horizontal:
15 mm (-5/+10 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.9.165/..
Watertight joint profiles
Movement horizontal:
30 mm (-10/+20 mm)
Visible width:
165 mm
Maximal joint width:
80 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.9.230/29
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Visible width:
230 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.8.95/0
Watertight joint profiles
Movement horizontal:
40 mm (±20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
95 mm
Maximal joint width:
35 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
VA.8.115/0
Watertight joint profiles
Movement horizontal:
60 mm (-25/+35 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
115 mm
Maximal joint width:
55 mm
Load rating:
wheel load 3500 kg up to Ø 150 mm, B = 100 mm
VA.8.135/0
Watertight joint profiles
Movement horizontal:
80 mm (-30/+50 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
135 mm
Maximal joint width:
75 mm
VA.8.110/0
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
108 mm
Maximal joint width:
28 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.8.130/0
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
128 mm
Maximal joint width:
48 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.8.95/0 G
Watertight joint profiles
Movement horizontal:
20 mm (±10 mm)
Movement vertical:
10 mm (±5 mm)
Visible width:
95 mm
Maximal joint width:
35 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
VA.8.110/0 G
Watertight joint profiles
Movement horizontal:
20 mm (-10/+10 mm)
Movement vertical:
10 mm (-5/+5 mm)
Visible width:
108 mm
Maximal joint width:
28 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
P-SAC 02/5.1/23-024-2
VA.8.95/.. F
Watertight joint profiles
Movement horizontal:
40 mm (±20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
95 mm
Maximal joint width:
60 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
P-SAC 02/5.1/23-024-2
VA.8.115/.. F
Watertight joint profiles
Movement horizontal:
60 mm (-25/+35 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
115 mm
Maximal joint width:
80 mm
Load rating:
wheel load 3500 kg up to Ø 150 mm, B = 100 mm
P-SAC 02/5.1/23-024-2
VA.8.135/.. F
Watertight joint profiles
Movement horizontal:
80 mm (-30/+50 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
135 mm
Maximal joint width:
100 mm
P-SAC 02/5.1/23-024-2
VA.8.110/.. F
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.8.120/.. F
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
116 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
P-SAC 02/5.1/23-024-2
VA.8.130/.. F
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
128 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.8.140/.. F
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
136 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
VA.8.196/.. F
Watertight joint profiles
Movement horizontal:
100 mm (-40/+60 mm)
Movement vertical:
50 mm (±25 mm)
Visible width:
196 mm
Maximal joint width:
100 mm
VA.8.60/.. GF
Watertight joint profiles
Movement horizontal:
6 mm (±3 mm)
Movement vertical:
4 mm (±2 mm)
Visible width:
60 mm
Maximal joint width:
20 mm
Load rating:
wheel load 2500 kg up to Ø 150 mm, B = 100 mm
