Drain pipes & accessories

Here you will find a selection of possible accessories for our drainage systems.

Drain pipes

System example: ALR.1.150/51 with drain pipe DN100, 200 mm long

Available for all types of channels and drain bodies. The position of the drain pipe can be adapted to the local conditions.

Standard dimensions:

  • DN70 (steel pipe 73x3), 200 mm long
  • DN100 (steel pipe 108x2), 200 mm long
  • DN 125 (steel pipe 129x2 mm), 200 mm long
  • DN150 (steel pipe 159x2 mm), 200 mm long

Further dimensions available on request!

With a grating width of 120 mm, drain pipe is only possible in DN70 (exceptions on request)!

Dirt trap

Available for all above mentioned drain pipes.

System example: Dirt trap DN100

Odour trap

Available for above mentioned drain pipes.

System example: Odour trap DN100

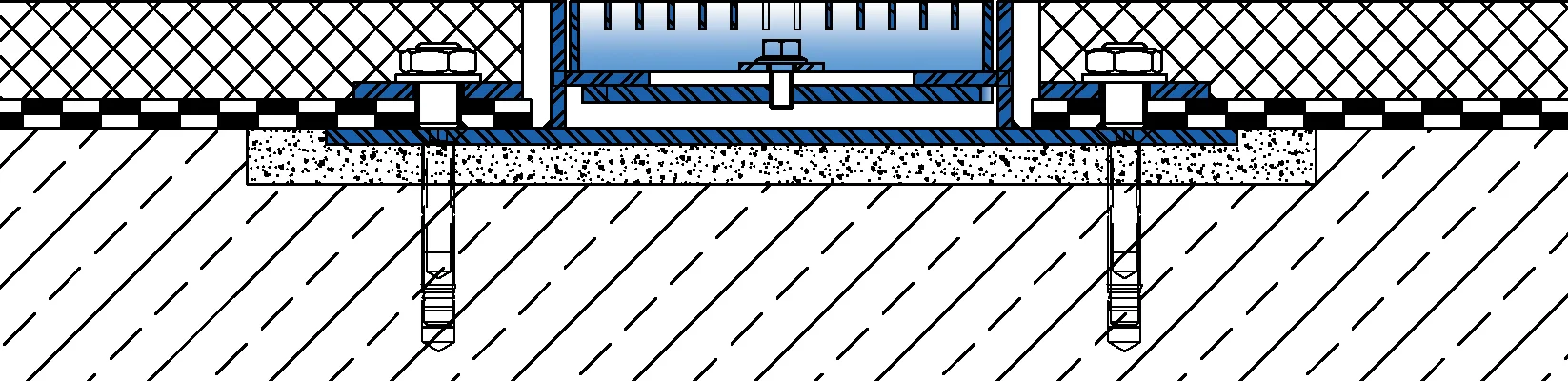

Grid lock

For all types of channels (ALR) and drain bodies (ALK).

System example: ALR.1.150/51
