P-SAC 02/5.1/23-024-2
VA.8.95/..
Watertight joint profiles
Movement horizontal:
40 mm (±20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
95 mm
Maximal joint width:
60 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.115/..
Watertight joint profiles
Movement horizontal:
60 mm (-25/+35 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
115 mm
Maximal joint width:
80 mm
Load rating:
wheel load 3500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.135/..
Watertight joint profiles
Movement horizontal:
80 mm (-30/+50 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
135 mm
Maximal joint width:
100 mm
Load rating trucks:
600 kN (DIN 1072)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.110/..
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details

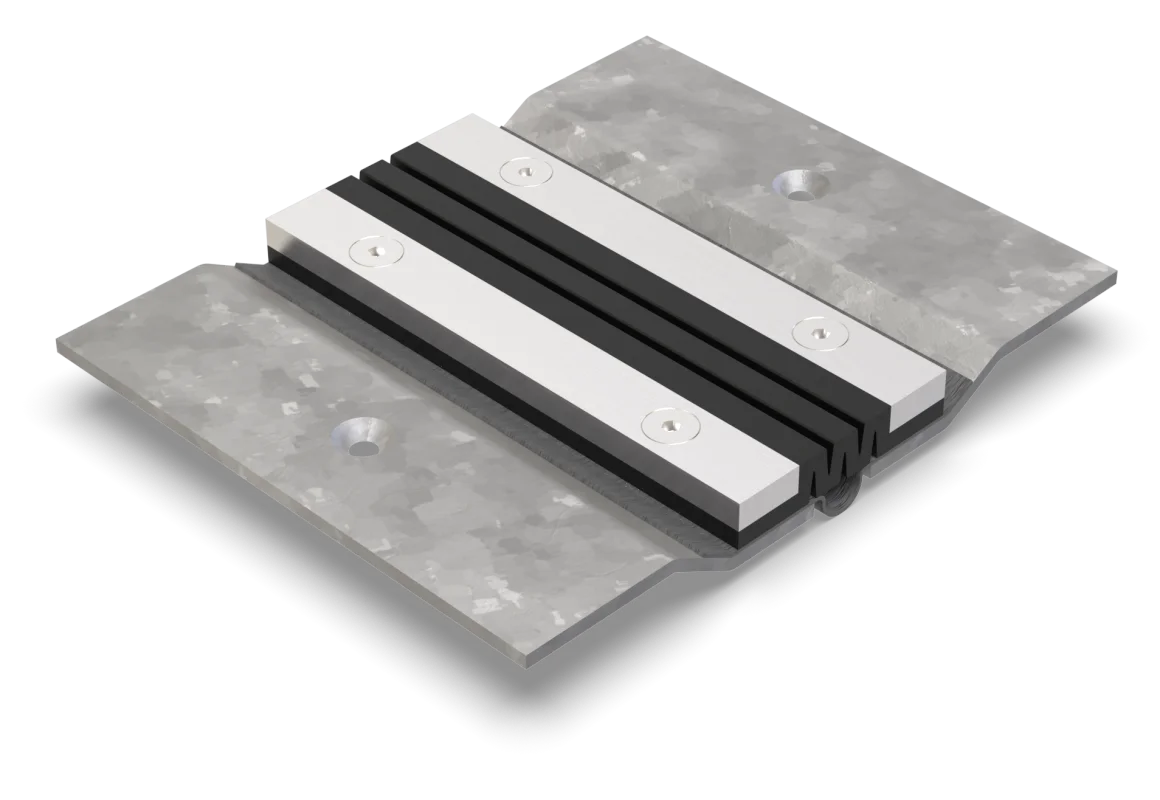

VA.8.110/27
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.130/..
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
128 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.130/27
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
128 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.196/..
Watertight joint profiles
Movement horizontal:
100 mm (-40/+60 mm)
Movement vertical:
50 mm (±25 mm)
Visible width:
196 mm
Maximal joint width:
100 mm
Load rating trucks:
300 kN (DIN 1072)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.60/.. G
Watertight joint profiles
Movement horizontal:
6 mm (±3 mm)
Movement vertical:
4 mm (±2 mm)
Visible width:
60 mm
Maximal joint width:
20 mm
Load rating:
wheel load 2500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
70 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.95/.. G
Watertight joint profiles
Movement horizontal:
20 mm (±10 mm)
Movement vertical:
10 mm (±5 mm)
Visible width:
95 mm
Maximal joint width:
60 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.110/.. G
Watertight joint profiles
Movement horizontal:
20 mm (±10 mm)
Movement vertical:
10 mm (±5 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.9.108/..
Watertight joint profiles
Movement horizontal:
15 mm (-5/+10 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
data sheet Details
VA.9.165/..
Watertight joint profiles
Movement horizontal:
30 mm (-10/+20 mm)
Visible width:
165 mm
Maximal joint width:
80 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
data sheet Details
VA.9.230/29
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Visible width:
230 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
data sheet Details
VA.10.230/..
Watertight joint profiles
Movement horizontal:
100 mm (±50 mm)
Visible width:
230 mm
Maximal joint width:
60 mm
Load rating:
wheel load 4000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
data sheet Details
VA.8.95/0
Watertight joint profiles
Movement horizontal:
40 mm (±20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
95 mm
Maximal joint width:
35 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.115/0
Watertight joint profiles
Movement horizontal:
60 mm (-25/+35 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
115 mm
Maximal joint width:
55 mm
Load rating:
wheel load 3500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.135/0
Watertight joint profiles
Movement horizontal:
80 mm (-30/+50 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
135 mm
Maximal joint width:
75 mm
Load rating trucks:
600 kN (DIN 1072)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.110/0
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
108 mm
Maximal joint width:
28 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.130/0
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
128 mm
Maximal joint width:
48 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.95/0 G
Watertight joint profiles
Movement horizontal:
20 mm (±10 mm)
Movement vertical:
10 mm (±5 mm)
Visible width:
95 mm
Maximal joint width:
35 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.110/0 G
Watertight joint profiles
Movement horizontal:
20 mm (-10/+10 mm)
Movement vertical:
10 mm (-5/+5 mm)
Visible width:
108 mm
Maximal joint width:
28 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.95/.. F
Watertight joint profiles
Movement horizontal:
40 mm (±20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
95 mm
Maximal joint width:
60 mm
Load rating:
wheel load 4500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.115/.. F
Watertight joint profiles
Movement horizontal:
60 mm (-25/+35 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
115 mm
Maximal joint width:
80 mm
Load rating:
wheel load 3500 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.135/.. F
Watertight joint profiles
Movement horizontal:
80 mm (-30/+50 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
135 mm
Maximal joint width:
100 mm
Load rating trucks:
600 kN (DIN 1072)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.110/.. F
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
108 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.120/.. F
Watertight joint profiles
Movement horizontal:
35 mm (-15/+20 mm)
Movement vertical:
20 mm (±10 mm)
Visible width:
116 mm
Maximal joint width:
50 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
P-SAC 02/5.1/23-024-2
VA.8.130/.. F
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
128 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.140/.. F
Watertight joint profiles
Movement horizontal:
60 mm (±30 mm)
Movement vertical:
30 mm (±15 mm)
Visible width:
136 mm
Maximal joint width:
70 mm
Load rating:
wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:
600 kN (DIN 1072)
Load rating forklifts:
150 kN (DIN 1055-3)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
VA.8.196/.. F
Watertight joint profiles
Movement horizontal:
100 mm (-40/+60 mm)
Movement vertical:
50 mm (±25 mm)
Visible width:
196 mm
Maximal joint width:
100 mm
Load rating trucks:
300 kN (DIN 1072)
Supply length:
3 mtr
Color of expansion insert:
schwarz
data sheet Details
