The Buchberger profile system - watertight joint profiles

Short foil

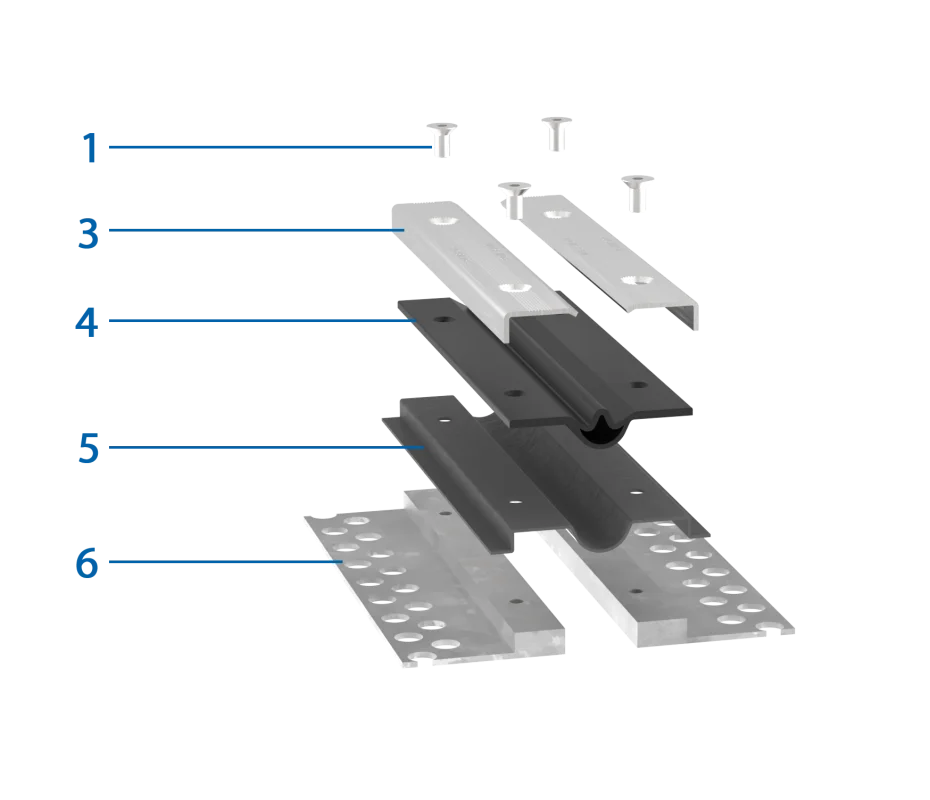

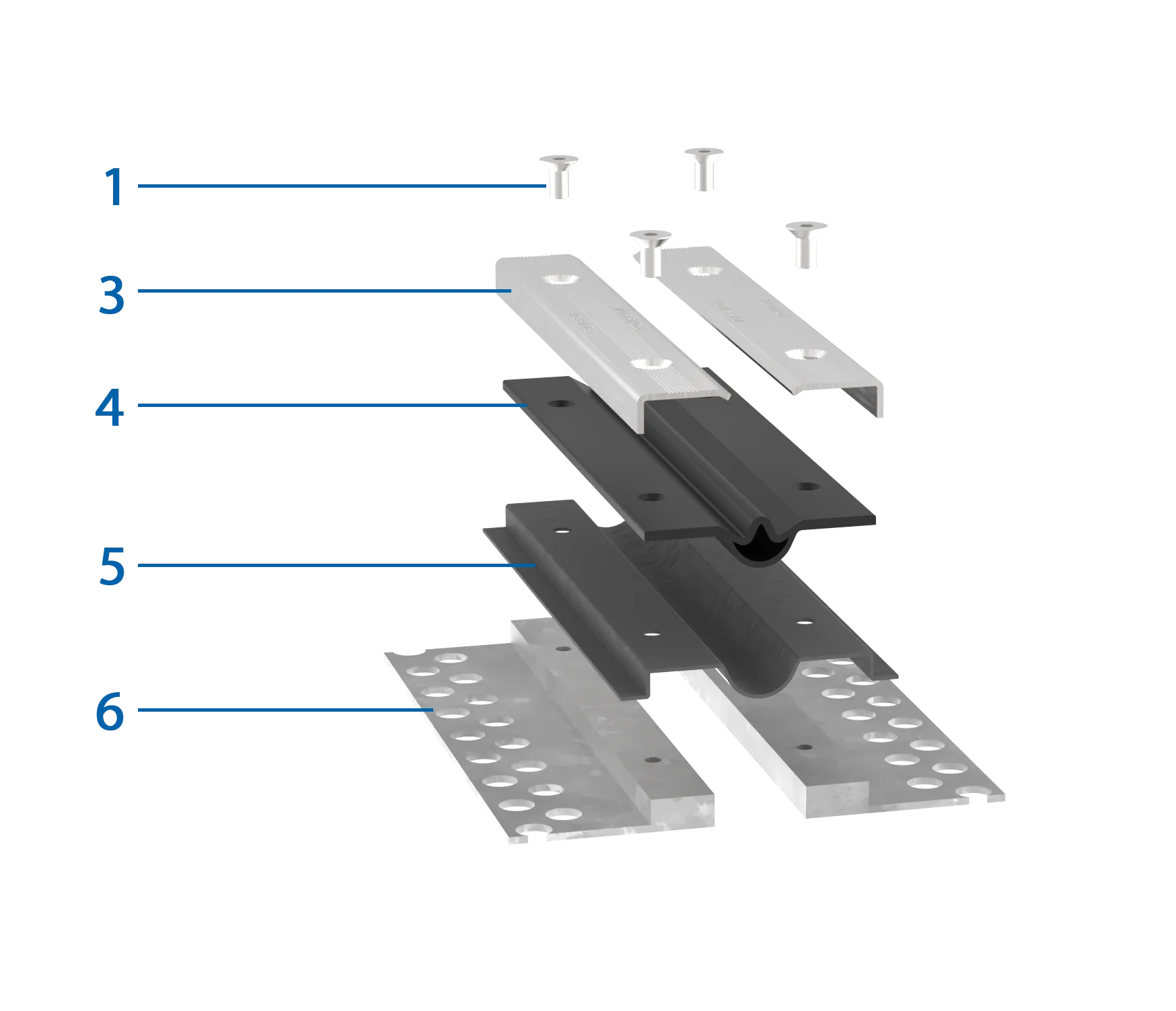

Joint profile with short Wolfin IB sealing membrane for coating.

System example: VA.8.95/20

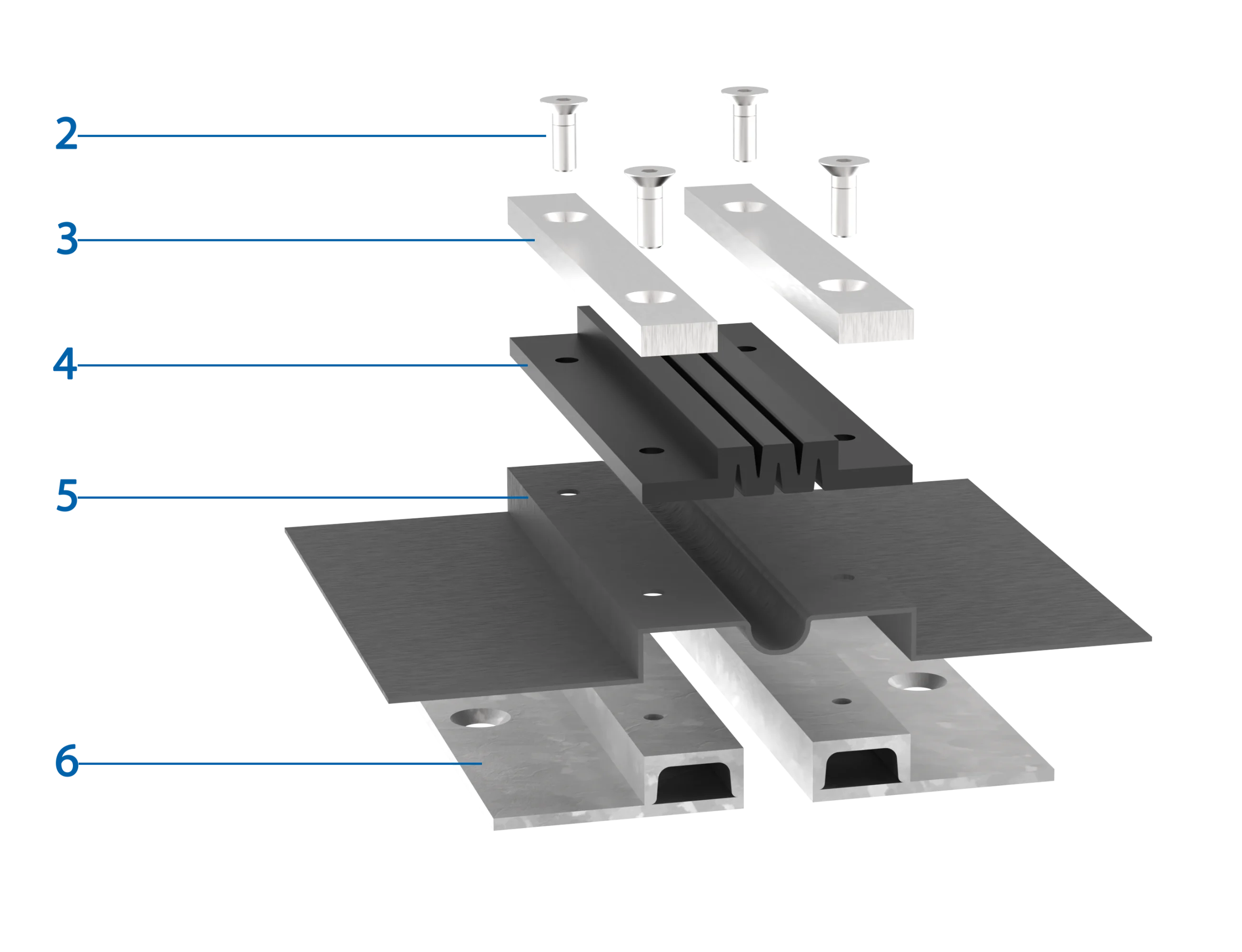

Joint profile with long Wolfin IB sealing membrane for bitumen welding membrane and liquid plastic.

System example: VA.8.95/47 F

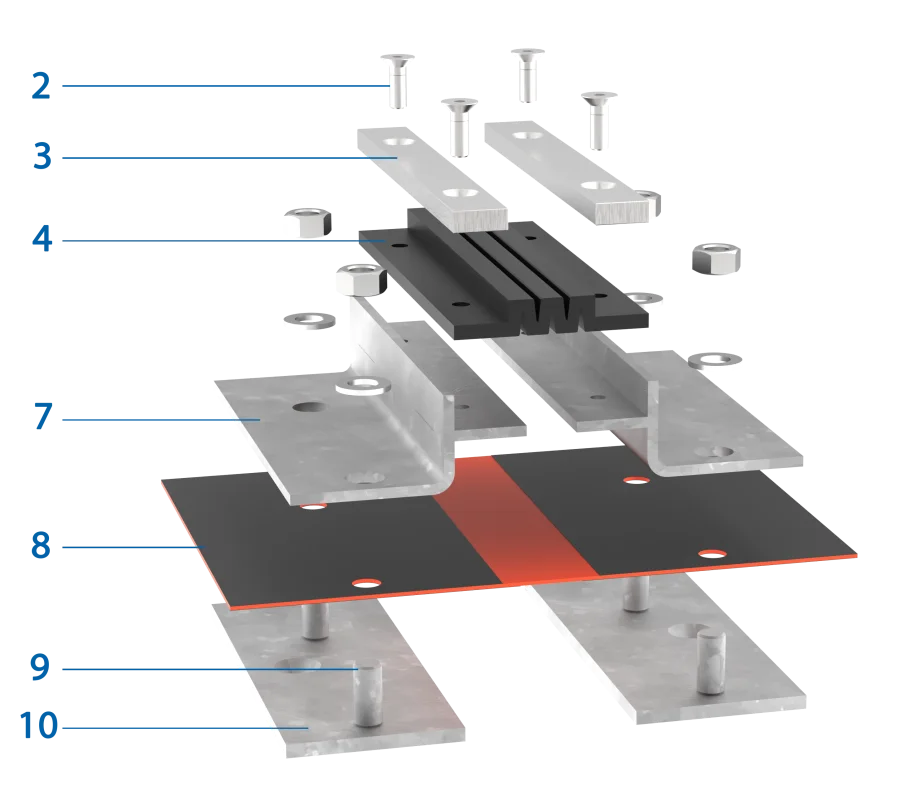

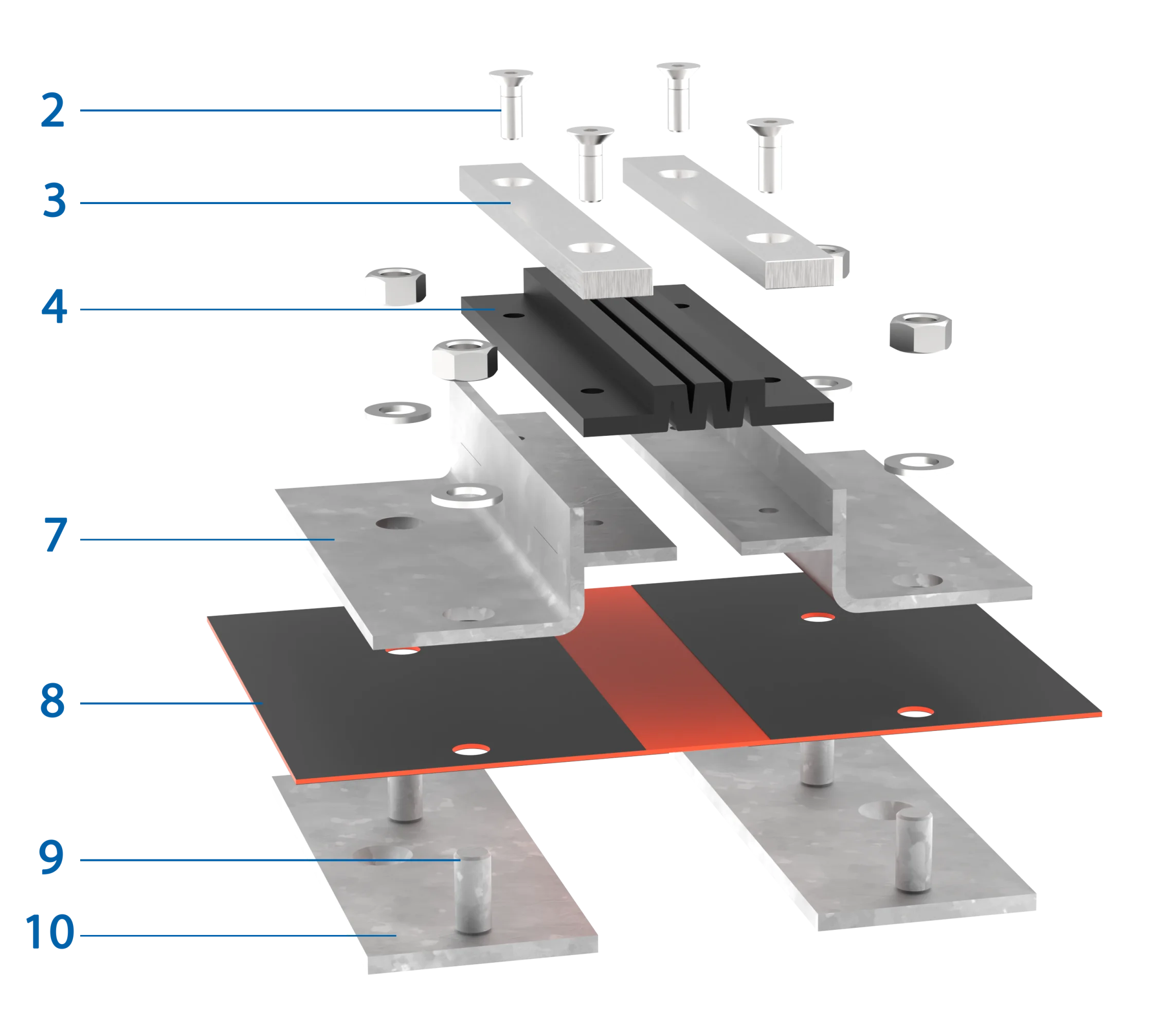

Joint profile to DIN with joint tape BF20 for bitumen welding membrane.

System example: BBF124/55

Caption

1 Countersunk screw M8

2 Countersunk screw M10

3 Clamping bar

4 Expansion insert (mechanical protection)

5 Wolfin IB (waterproof sealing membrane)

6 Substructure

7 Loose flange

8 Joint tape BF20 (waterproof sealing membrane)

9 M16 threaded bolt with nut and washer

10 Fixed flange
