End designs - drainage systems

The channel end designs shown are a selection of possible fittings.

We will find the right solution for every drainage concept when taking measurements on site. The drain channels are made to measure in our factory and professionally installed by our fitters.

Upstand h=150 mm

System example: ALR.1.150/51

Flange circumferential

System example: ALR.1.150/51

Upstand h=50 mm

System example: ALR.4.150/50

Flange circumferential

System example: ALR.4.150/50

Upstand h=50 mm

System example: ALR.5.150/50

End plate

System example: ALR.5.150/50

Connection of drain channel to pumping pit cover

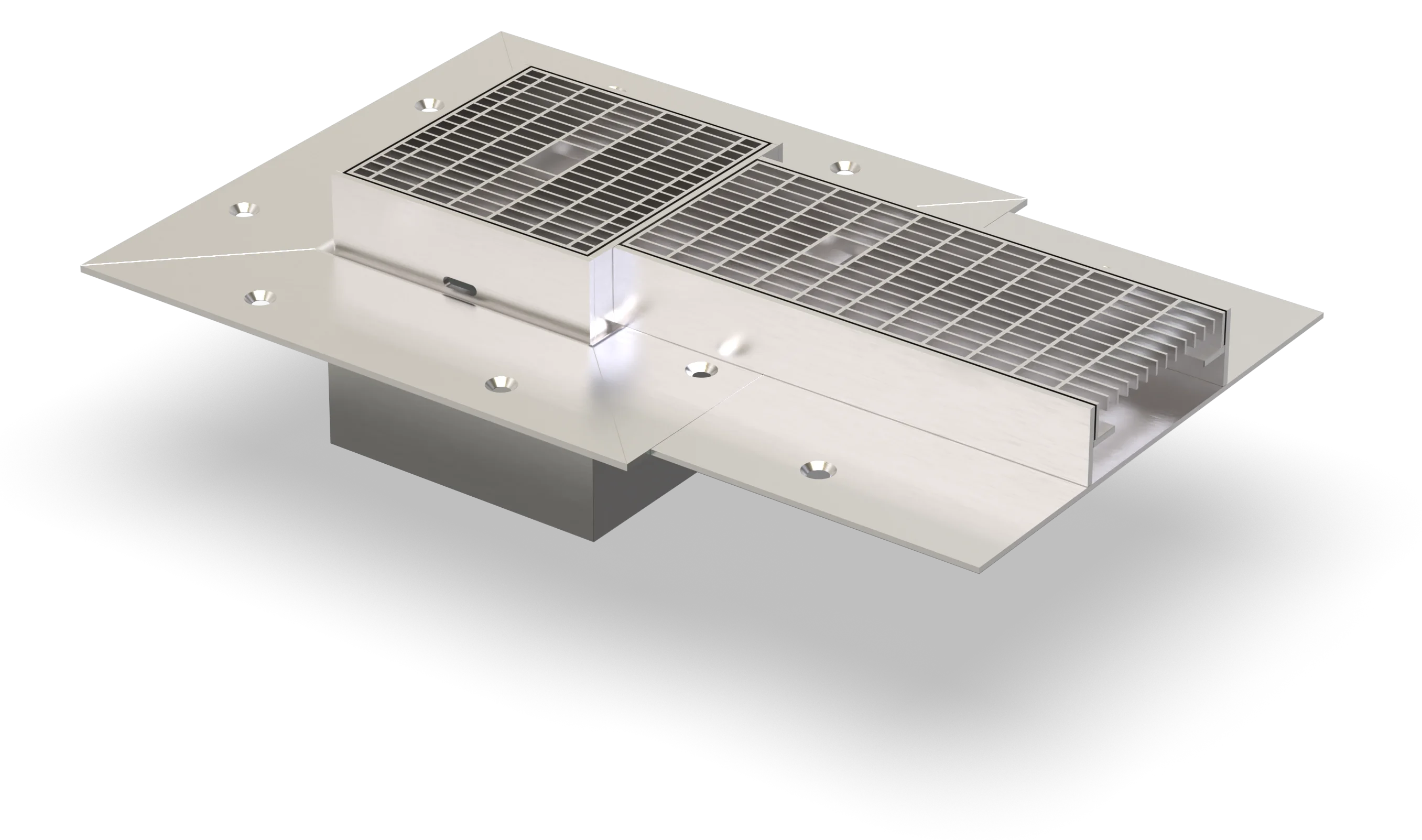

System example: ALR.2.150/59 to PSA.2.200-200/60

Connection of drain channel to pumping pit cover

Possible connection variants:

  • ALR.1 with PSA.1
  • ALR.2 with PSA.2
  • ALR.4 with PSA.4
  • ALR.5 with PSA.5
  • ALR.8 with PSA.8
