Watertight joint profiles

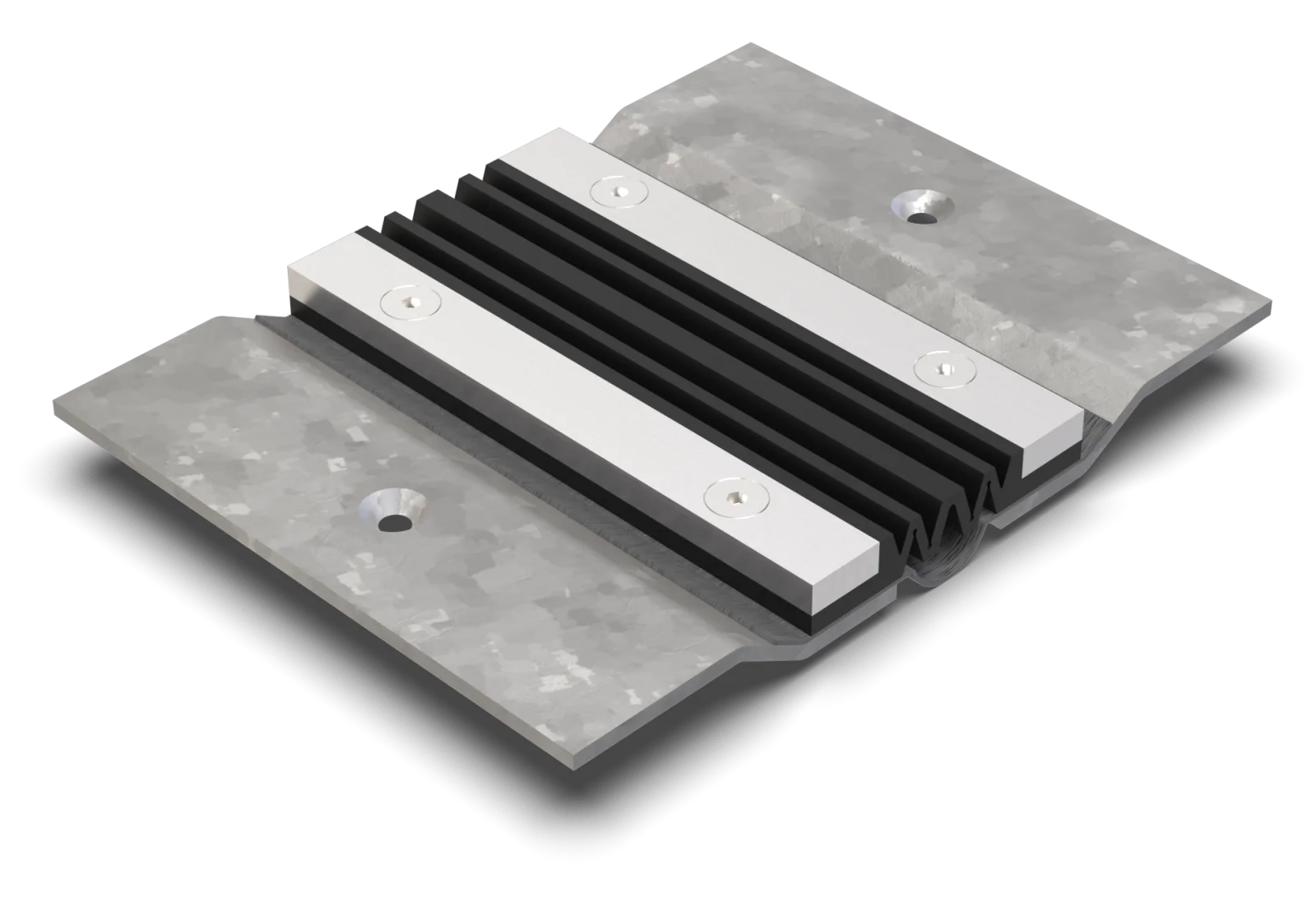

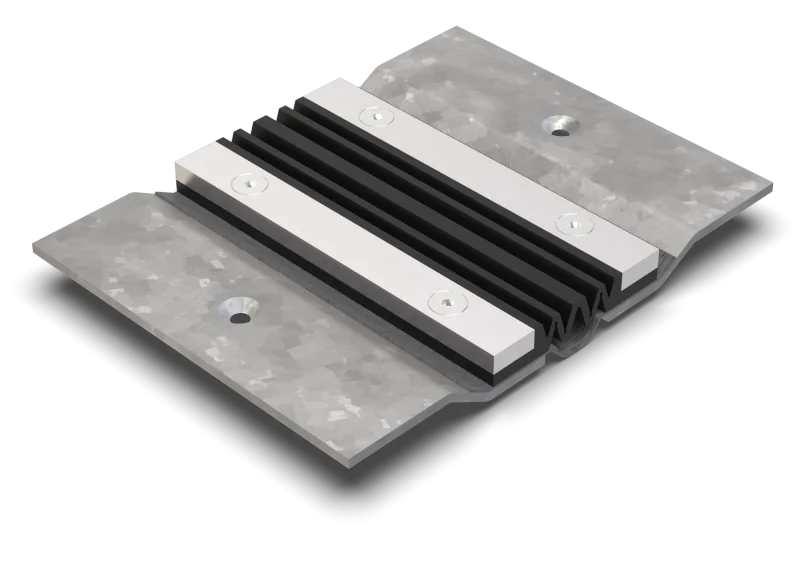

VA.8.130/27

high load-bearing capacity
low installation height
professional coating connection

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

open Closes at 16:00

thursday: 07:00 - 16:00 Uhr
friday: 07:00 - 13:00 Uhr
saturday: Closed
sunday: Closed
monday: 07:00 - 16:00 Uhr
tuesday: 07:00 - 16:00 Uhr
wednesday: 07:00 - 16:00 Uhr

Features

watertight, resistant to heavy loads, trafficable by fork-lift trucks, abrasion-, weather- and temperature-resistant (-40°C to +120°C), resistant to de-icing salt and waste water (alkalis, microbes, bacteria), a different sealing membrane can be used by arrangement

Applications

parking decks, parking garages, underground garages, ramp crossings, pedestrian bridges, all industrial applications

Material

substructure hot-dip galvanised steel and visible surface stainless steel V2A (V4A on request), EPDM expansion insert, Wolfin IB sealing membrane

Covering Types

coating

trafficability

passenger cars, trucks, fork-lifts

Formed parts

upstand, end piece, corner piece, T-piece, cross piece, floor-wall connections

Notes

The sealing and expansion insert is flanged with screws M10 at intervals of 150 mm.

The sealing membrane projecting from the joint profile must be integrated into the sealing system to prevent water infiltration from the sides.

Installation by our own fitters recommended.

Technical data

Movement horizontal:: 60 mm (±30 mm)
Movement vertical:: 30 mm (±15 mm)
Visible width:: 128 mm
Maximal joint width:: 70 mm
Load rating:: wheel load 5000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:: 600 kN (DIN 1072)
Load rating forklifts:: 150 kN (DIN 1055-3)
Supply length:: 3 mtr
Color of expansion insert:: schwarz

Designs

Article No.	Profile height (h)	Recess (BxT)
VA.8.130/27	27 mm	340 x 37 mm

Technical design — Subject to technical change without notice

VA.8.130/27

Downloads

data sheet PDF

VA.8.130/27.doc Tender text

VA.8.130/27.dwg Auto CAD

VA.8/27.pdf Installation suggestion
