Joint profile end designs

The profile end designs shown are a selection of possible formed parts.

We will find the right solution for all joint patterns when taking measurements on site. The joint profiles are made to measure in our factory and professionally installed by our fitters.

End designs VA.8...

Upstand h=50 mm

System example: VA.8.95/20

Upstand h=150 mm

System example: VA.8.95/20

End piece h=variable

System example: VA.8.95/20

Corner piece vertical h=variable

System example: VA.8.95/20

Cavetto 45 ° with end piece h=50 mm

System example: VA.8.95/20

Bevelling h=variable

System example: VA.8.95/20

Foil lift h=variable

System example: VA.8.95/52 F

Upstand h=150 mm

System example: VA.8.95/52 F

Corner piece vertical h=variable

Systemexample: VA.8.95/52 F

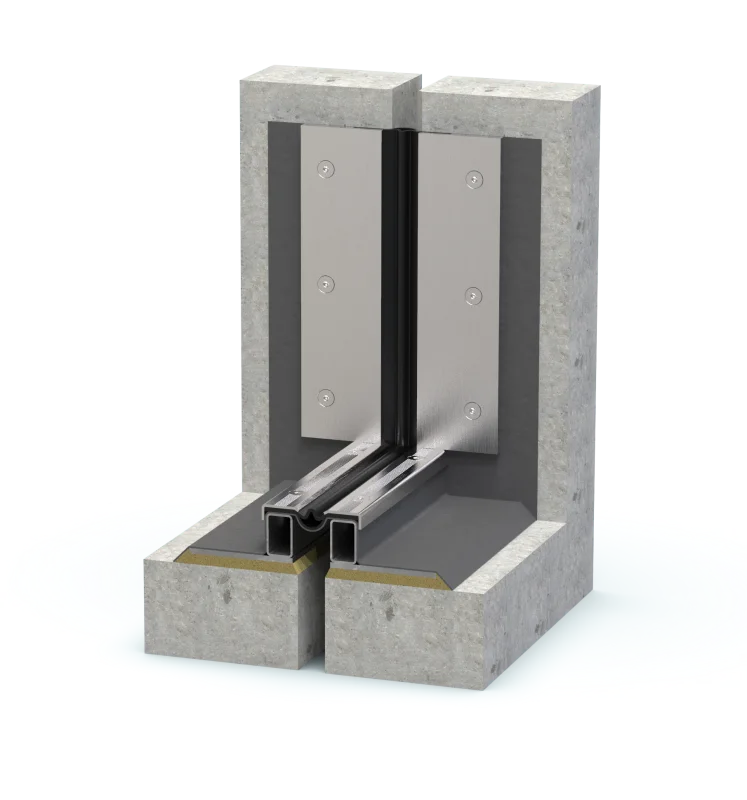

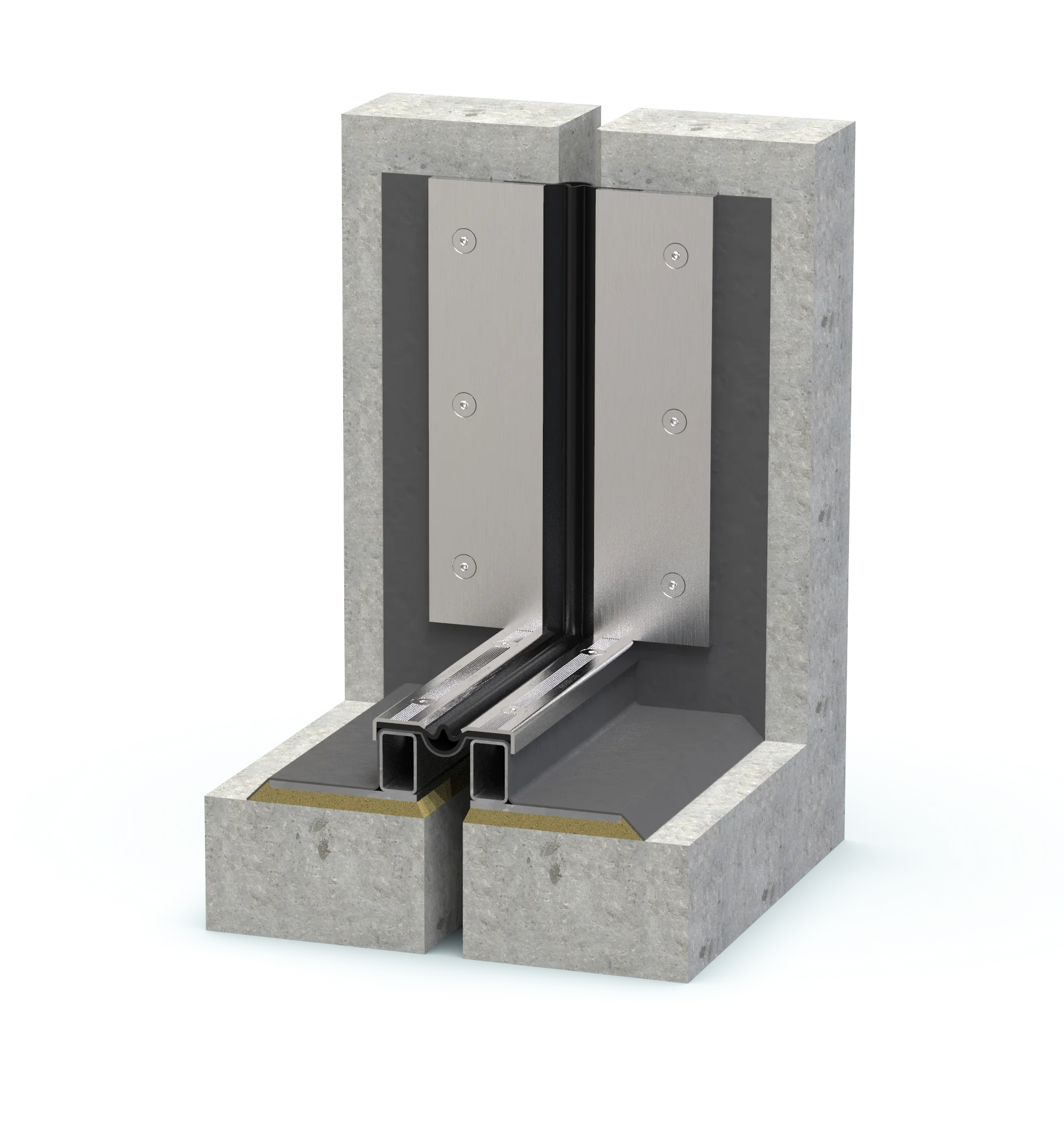

End piece h=variable

System example: VA.8.95/52 F

Corner piece with W3

Corner piece horizontal with transition floor-floor to floor-wall connection W3 and end piece h=50 mm

System example: VA.8.95/20

End piece with W3

T-piece with transition floor-floor to floor-wall connection W3 and profile end formation end piece h=50 mm

System example: VA.8.95/20

Corner piece with W3

Corner piece horizontal with transition floor-floor to floor-wall connection W3

System example: VA.8.95/20

End piece with W3

End piece h=50 mm for floor-wall connection W3 with corner piece horizontal

System example: VA.8.95/20

End designs BBF...

Rounded upstand h=min. 150 mm

System example: BBF124/55

Cavetto 45° and upstand h=150 mm

System example: BBF124/55

Foil lift h=variable

System example: BBF124/55

Foil lift h=variable

System example: BBF124/100 WD

Upstand h=150 mm

for floor-wall connection W1 with corner piece horizontal

System example: BBF124/55 W1

Corner piece horizontal

with transition floor-floor to floor-wall W1

System example: BBF124/55 W1

End designs kerb

Kerb (pavement)

Joint Profile is adapted to the course of the kerb.

System example: VA.8.95/20

Kerb (pavement)

Joint profile continues under the kerb, the resulting gap is covered with anti-slip tear plate (on request).

System example: VA.8.110/47 F

Kerb (pavement)

Superstructure adapted to the course of the kerb, loose/fixed flange following the sealing level

System example: BBF124/55
