Floor-wall connections

Informations for professional construction of building joints along rising building components (such as columns).

Floor-wall connection W1

Profile design floor-wall connection W1
for expansion joints on rising building components
with mounting bracket upwards.

System example: AL.5.70/65 W1

Fitting floor-wall connection W1
if the expansion joint passes directly on rising building components, two corner pieces are required horizontally at the transition from floor-floor to floor-wall (Z-shaped design).

Floor-wall connection W2

Profile design floor-wall connection W2
for expansion joints on rising building components with mounting bracket downwards. Installation only possible from profile height of approx. 60 mm.

System example: AL.5.70/65 W2

Fitting floor-wall connection W2
if the expansion joint passes directly on rising building components, two corner pieces are required horizontally at the transition from floor-floor to floor-wall (Z-shaped design).

Floor-wall connection W3

Profile design floor-wall connection W3
for expansion joints on rising building components
with cover plate.

System example: VA.6.165/19 W3

Fitting floor-wall connection W3
if the expansion joint passes directly on rising building components, a fitting profile is required at the transition from floor-floor to floor-wall. A straight (aligned) profile run is therefore given.

Boden-Wandanschluss W3

Profilausführung Boden-Wandanschluss W3
für Dehnungsfugen an aufgehenden Bauteilen
mit Abdeckblech.

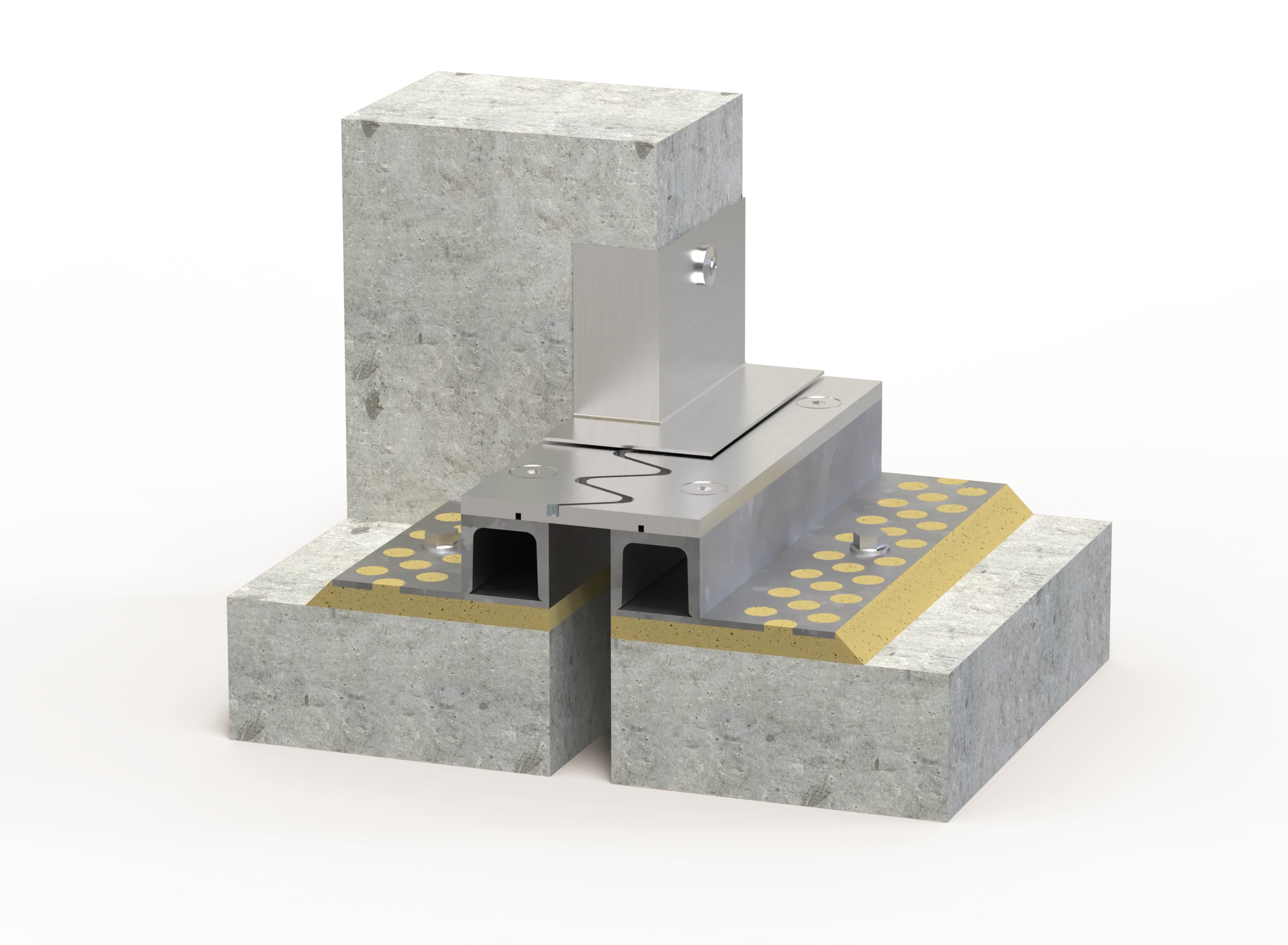

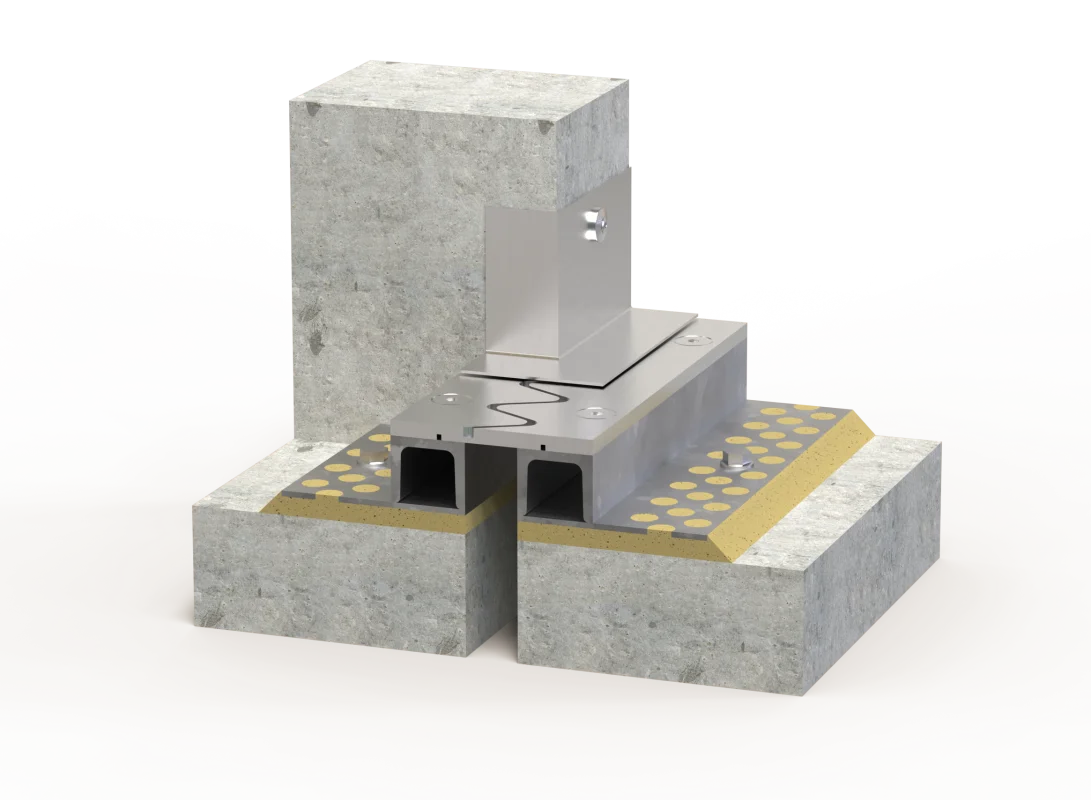

Systembeispiel: VA.6.110/47 W3

Formstück Boden-Wandanschluss W3
bei Verlauf der Dehnungsfuge direkt am aufgehenden Bauteil; dadurch wird jeweils am Übergang Boden-Boden zu Boden-Wand ein Profilformstück benötigt. Ein gerader (fluchtender) Profilverlauf ist somit gegeben.
