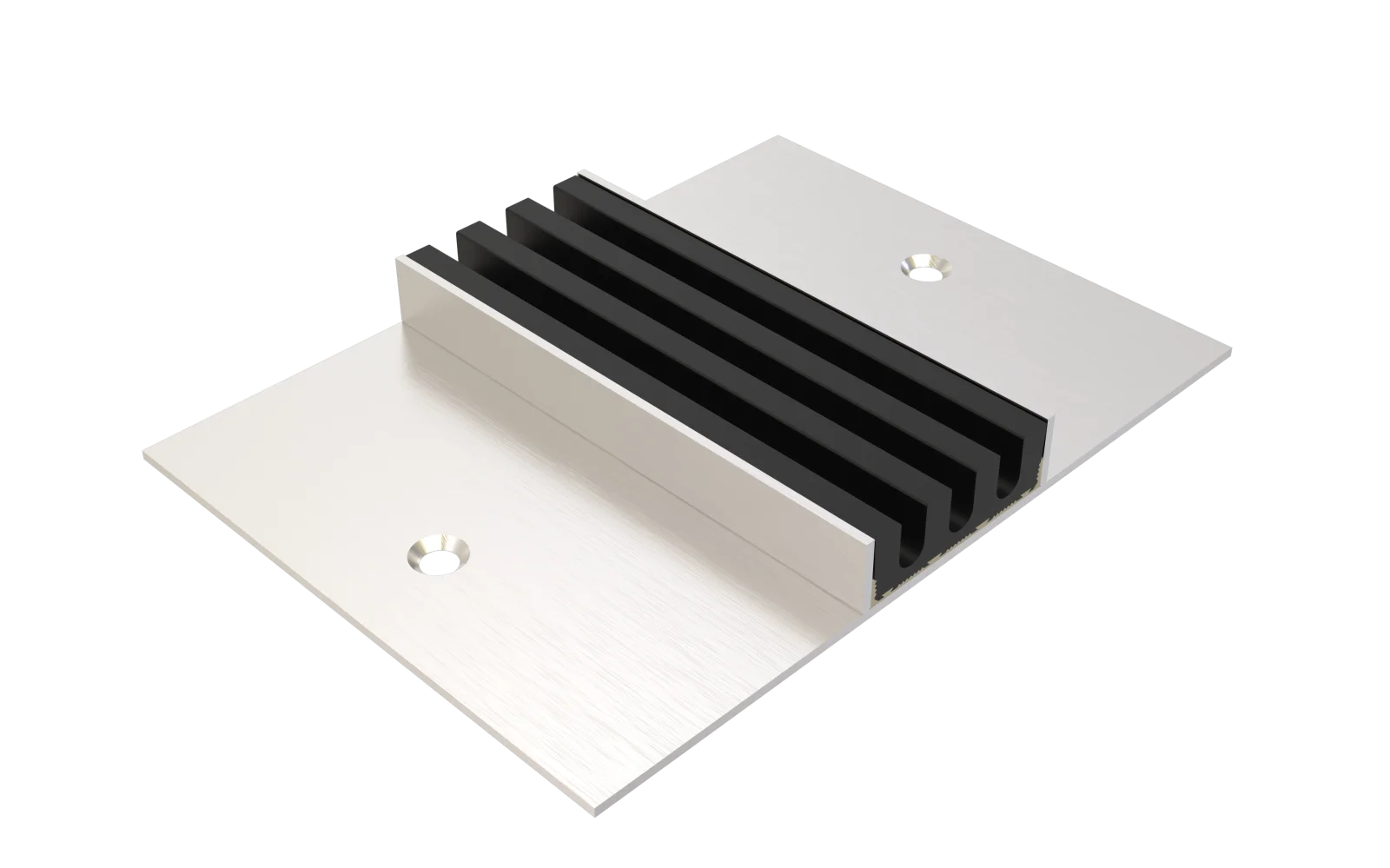

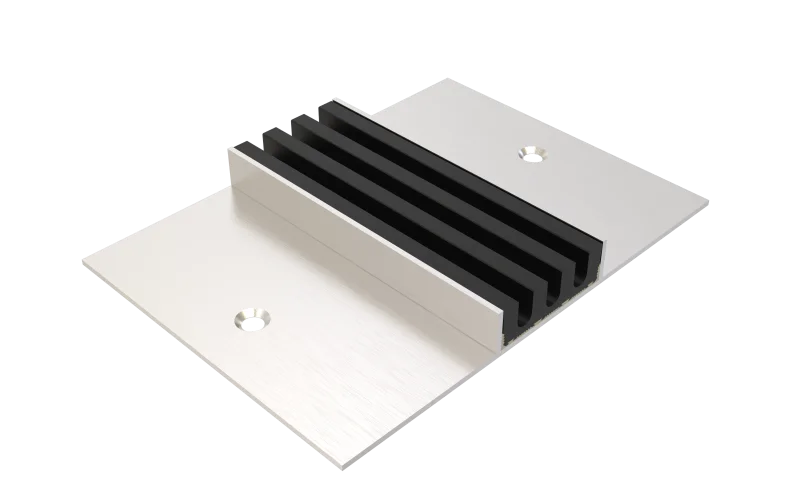

KMR.2.100/34

suitable for all types of covering
high load-bearing capacity
low installation height
with adhering flange

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

Closed Opens on Monday at 07:00

saturday: Closed
sunday: Closed
monday: 07:00 - 16:00 Uhr
tuesday: 07:00 - 16:00 Uhr
wednesday: 07:00 - 16:00 Uhr
thursday: 07:00 - 16:00 Uhr
friday: 07:00 - 13:00 Uhr

Features

resistant to heavy loads, abrasion-, weather- and temperature-resistant (-40°C to +120°C), resistant to de-icing salt and waste water (alkalis, microbes, bacteria), permanently tight, corrosion-resistant

Applications

parking decks, parking garages, underground garages, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

hot-dip galvanised steel, stainless steel V2A (V4A on request), sealing membrane Soba FlamLINE (Butyl-Elastomer)

Covering Types

asphalt, coating, concrete, screed

trafficability

passenger cars, trucks

Formed parts

corner piece, T-piece, cross piece, channel end piece (flange all around or upstand), channel drain

Notes

The individual channel elements are tightly welded together during installation on site.

EPDM-Einlage wird eingeklebt.

For stainless steel, the general cleaning and care instructions must be observed (see also download area).

Installation by our own fitters recommended.

Technical data

Material thickness channel body:: 4 mm
Supply length:: 3 mtr
Kammrinnenbreite:: 100 mm

Designs

Article No.	Channel height (h)	Recess (BxT)
KMR.2.100/34	34 mm	400 x 20 mm

Technical design — Subject to technical change without notice

KMR.2.100/34
