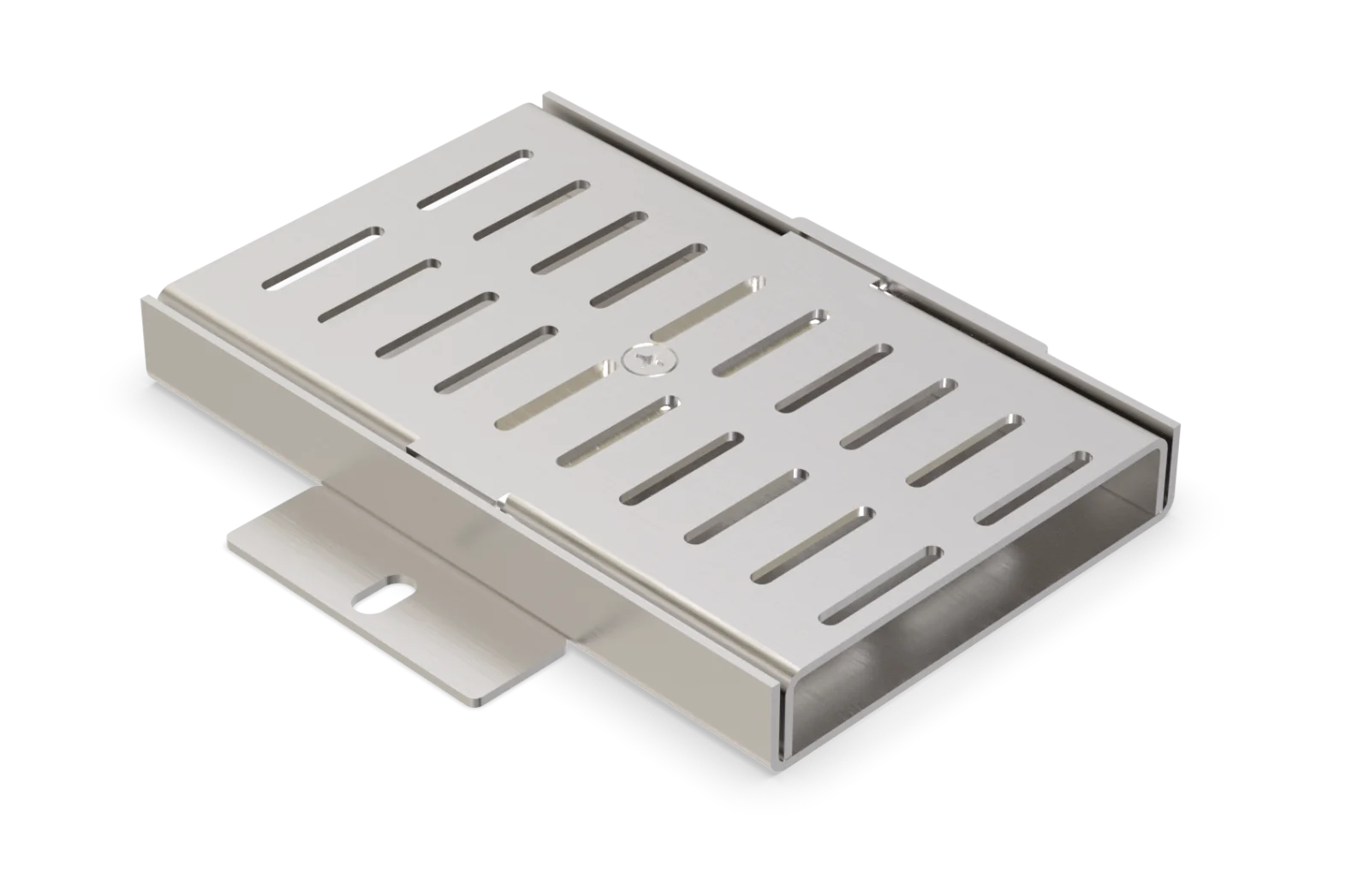

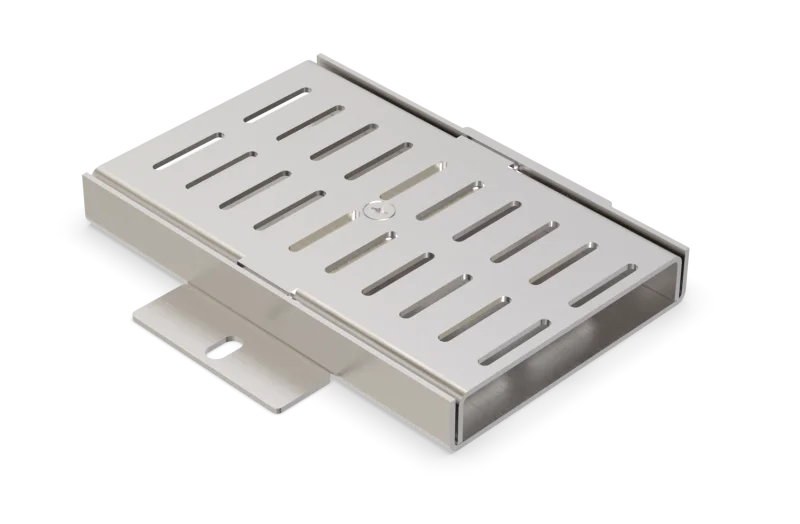

FLR.5.150/..

car-trafficable
low installation height

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

open Closes at 16:00

tuesday: 07:00 - 16:00 Uhr
wednesday: 07:00 - 16:00 Uhr
thursday: 07:00 - 16:00 Uhr
friday: 07:00 - 13:00 Uhr
saturday: Closed
sunday: Closed
monday: 07:00 - 16:00 Uhr

Features

permanently tight, corrosion-resistant, slot width 35x6 mm, Slotted grate lock included

Applications

parking decks, parking garages, underground garages, all industrial applications, shopping centres, railway stations, airports, exhibition halls, residential, office and administration buildings

Material

stainless steel V2A (V4A on request)

Covering Types

coating, screed, industrial coverings

trafficability

passenger cars

Formed parts

corner piece, T-piece, cross piece, channel end piece (end plate welded in at the front), channel drain

Notes

The individual channel elements are tightly welded together during installation on site.

For stainless steel, the general cleaning and care instructions must be observed (see also download area).

Installation by our own fitters recommended.

Technical data

Material/sheet thickness:: 3 mm
Supply length:: 3 mtr
Slotted grating width:: 150 mm

Designs

Article No.	Channel height (h)	Recess (BxT)
FLR.5.150/30	30 mm	270 x 40 mm

Technical design — Subject to technical change without notice

FLR.5.150/..

Downloads

data sheet PDF

V2A FLR.5.150/30.doc Tender text

V4A FLR.5.150/30.doc Tender text

FLR.5.150/30.dwg Auto CAD

FLR.5.pdf Installation suggestion
