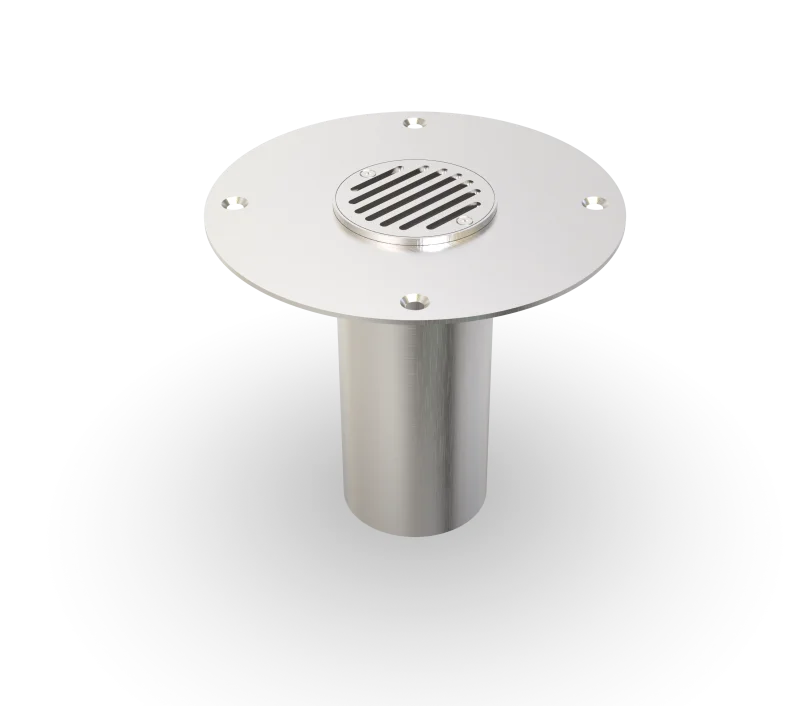

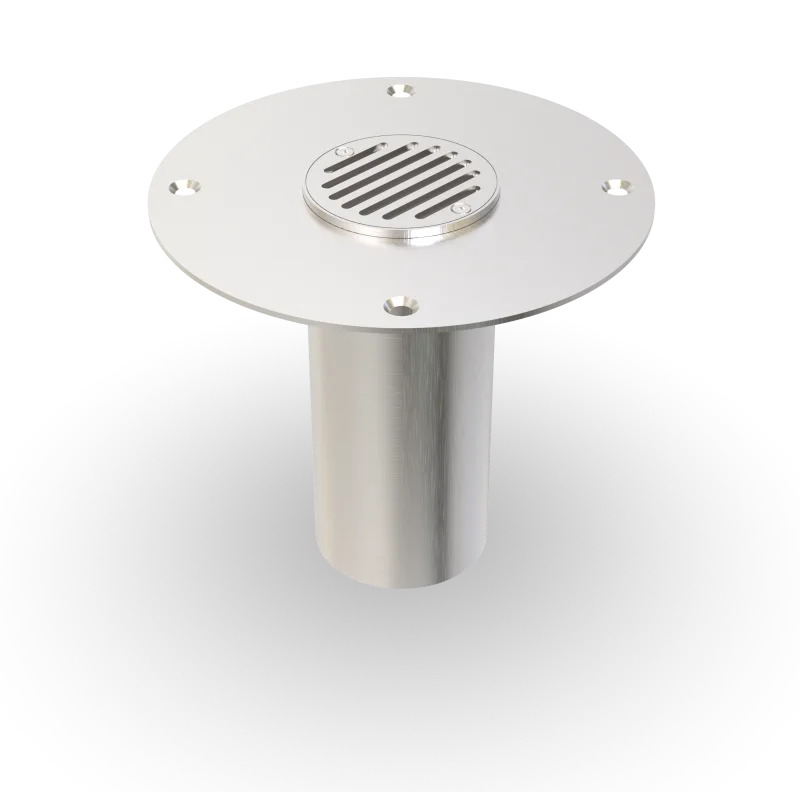

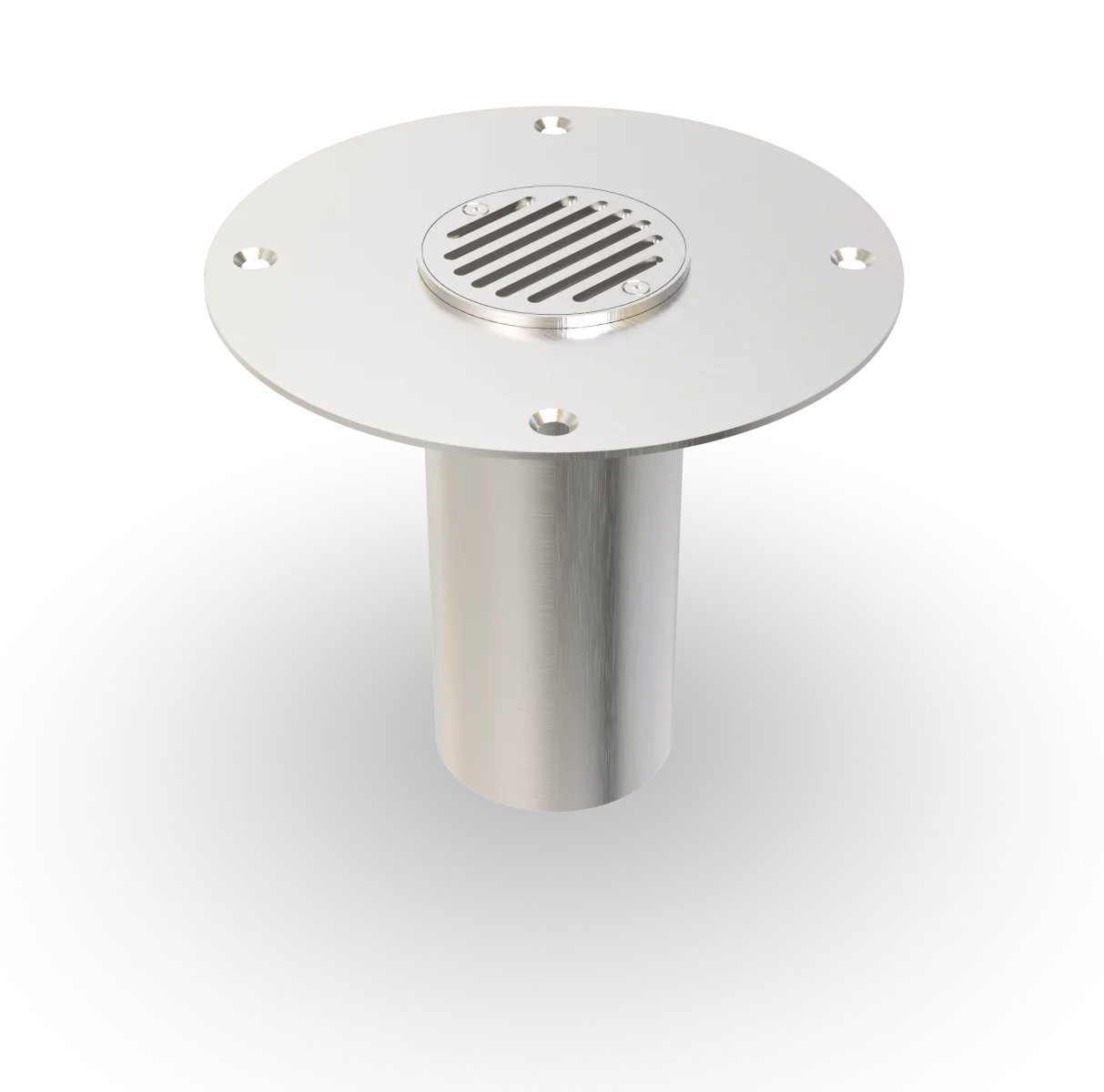

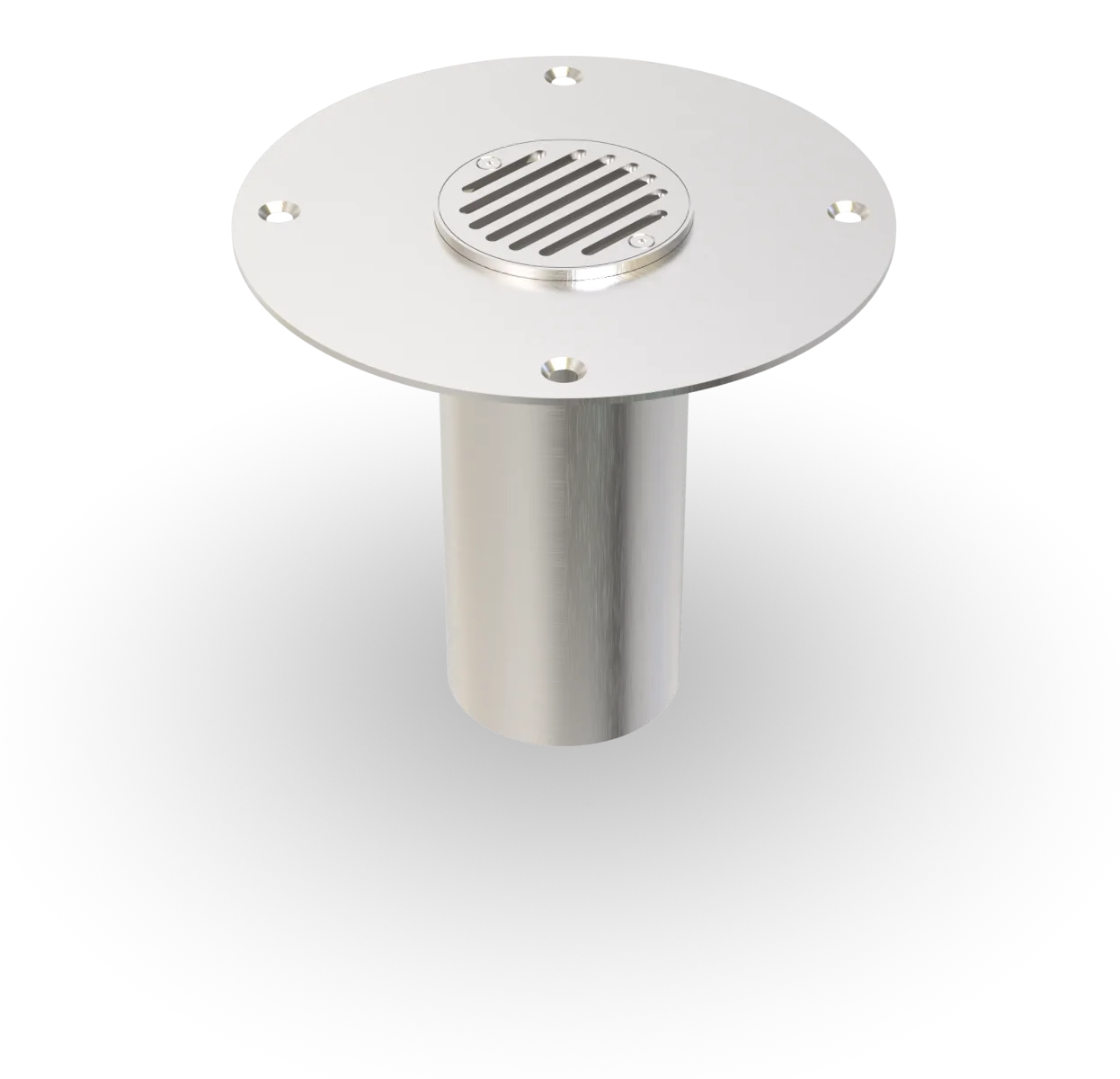

Floor drain

BAL.8.

high load-bearing capacity
with coating-flange

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

open Closes at 16:00

thursday: 07:00 - 16:00 Uhr
friday: 07:00 - 13:00 Uhr
saturday: Closed
sunday: Closed
monday: 07:00 - 16:00 Uhr
tuesday: 07:00 - 16:00 Uhr
wednesday: 07:00 - 16:00 Uhr

Features

resistant to heavy loads, permanently tight, corrosion-resistant, high flexibility (variable heights and widths), Slotted grate lock included, drain pipe DN100, length 200 mm

Applications

parking decks, parking garages, underground garages, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

hot-dip galvanised steel, stainless steel V2A (V4A on request)

Covering Types

coating, concrete, screed, liquid plastic

trafficability

passenger cars (trucks on request)

Notes

For stainless steel, the general cleaning and care instructions must be observed (see also download area).

Flange also available as square.

Also available in 8 mm and 10 mm thickness.

Floor drains are also available with a dirt trap.

Technical data

Material thickness of coating flange:: 4 mm

Designs

Article No.	Height (h)	Recess (BxT)
BAL.8.100/10	10 mm	340 x 20 mm
BAL.8.125/10	10 mm	360 x 20 mm
BAL.8.150/10	10 mm	390 x 20 mm

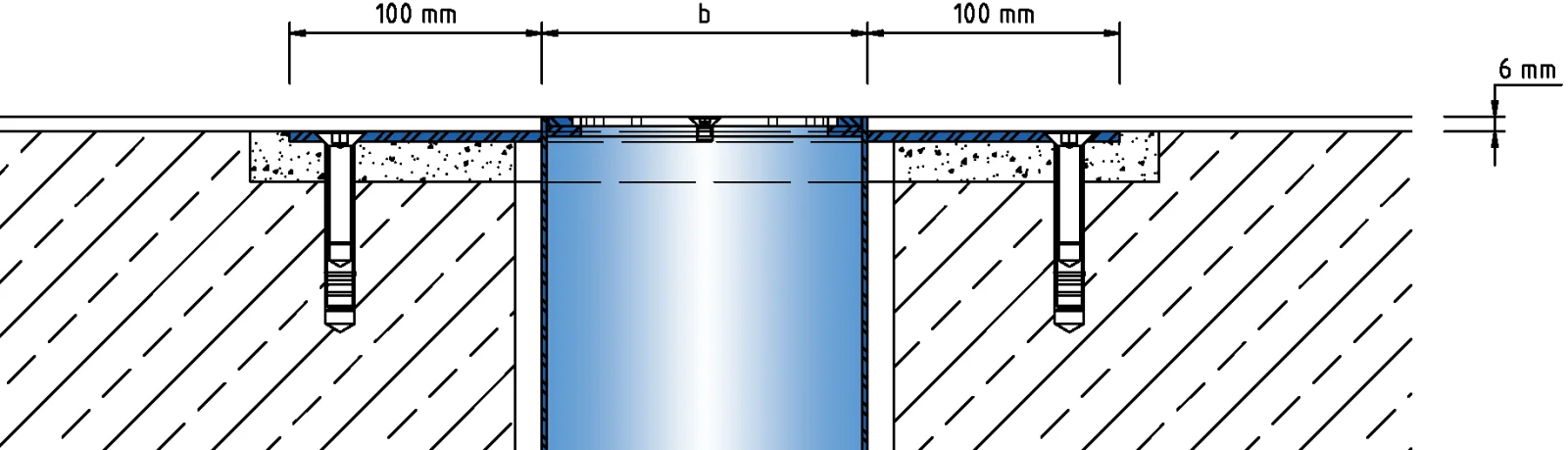

Technical design — Subject to technical change without notice

BAL.8.
