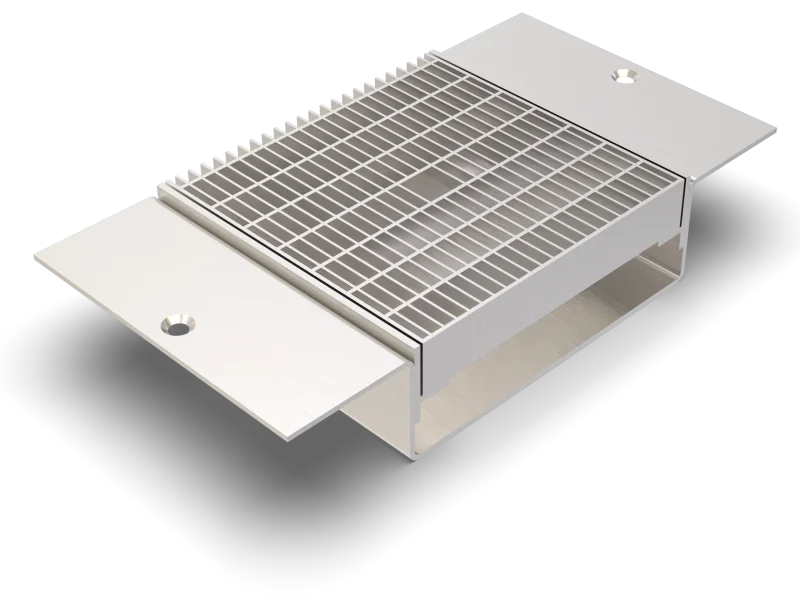

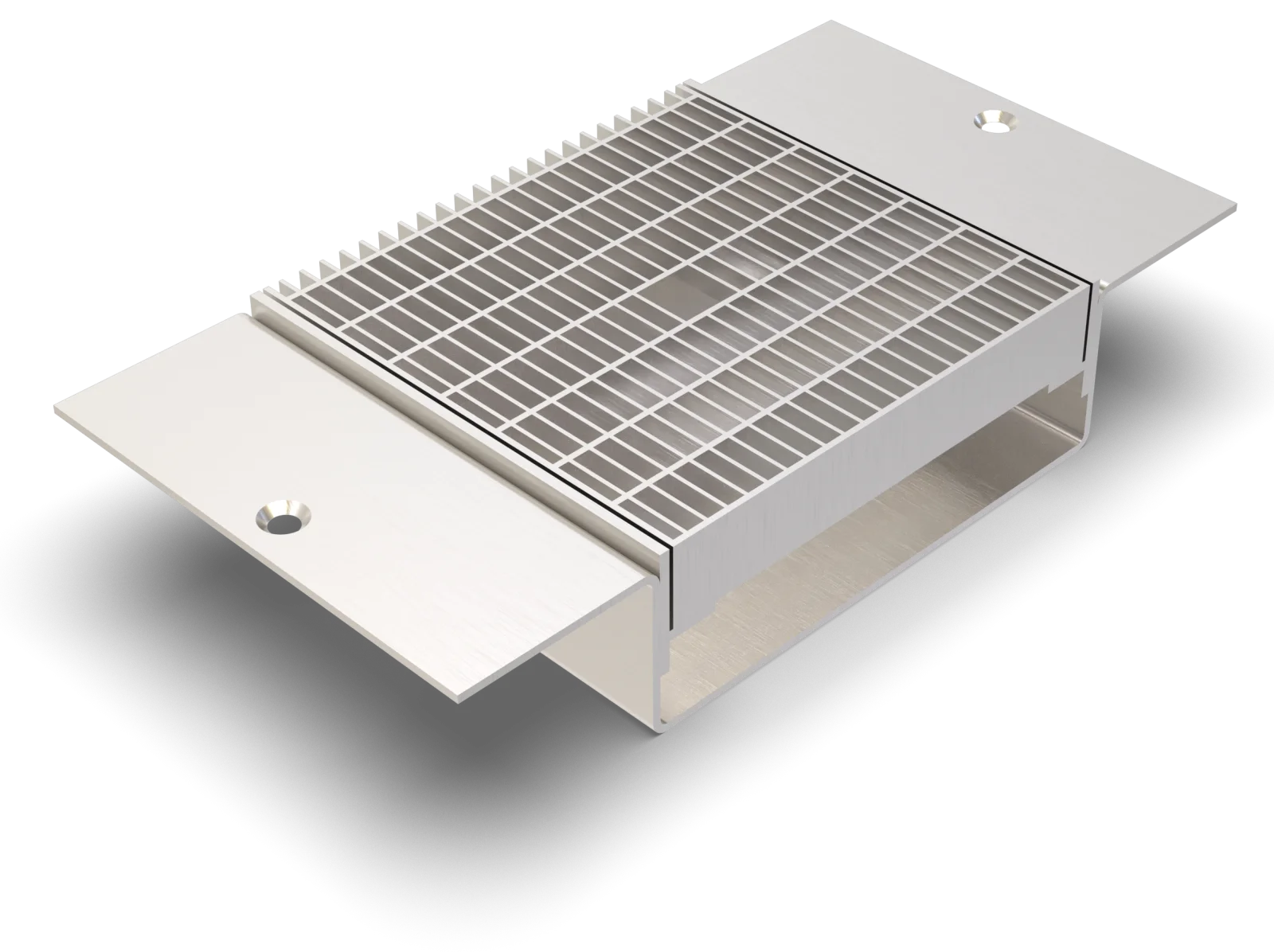

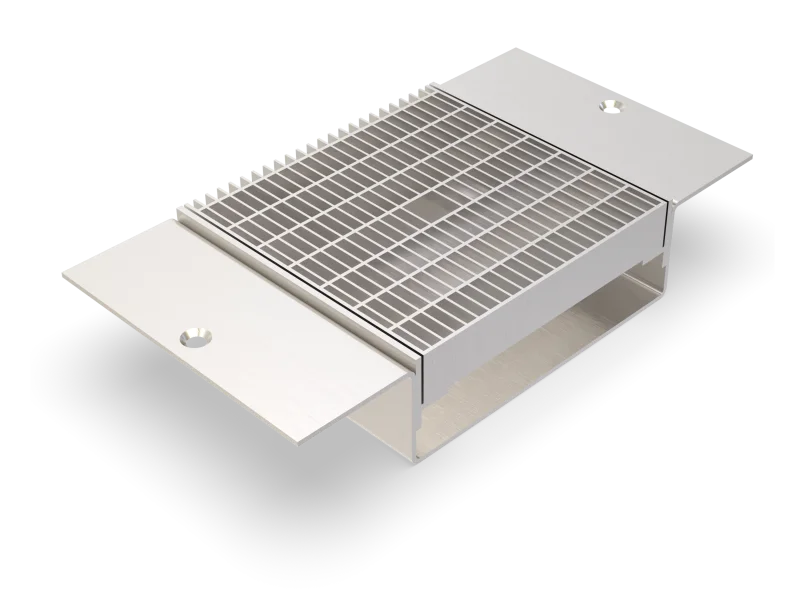

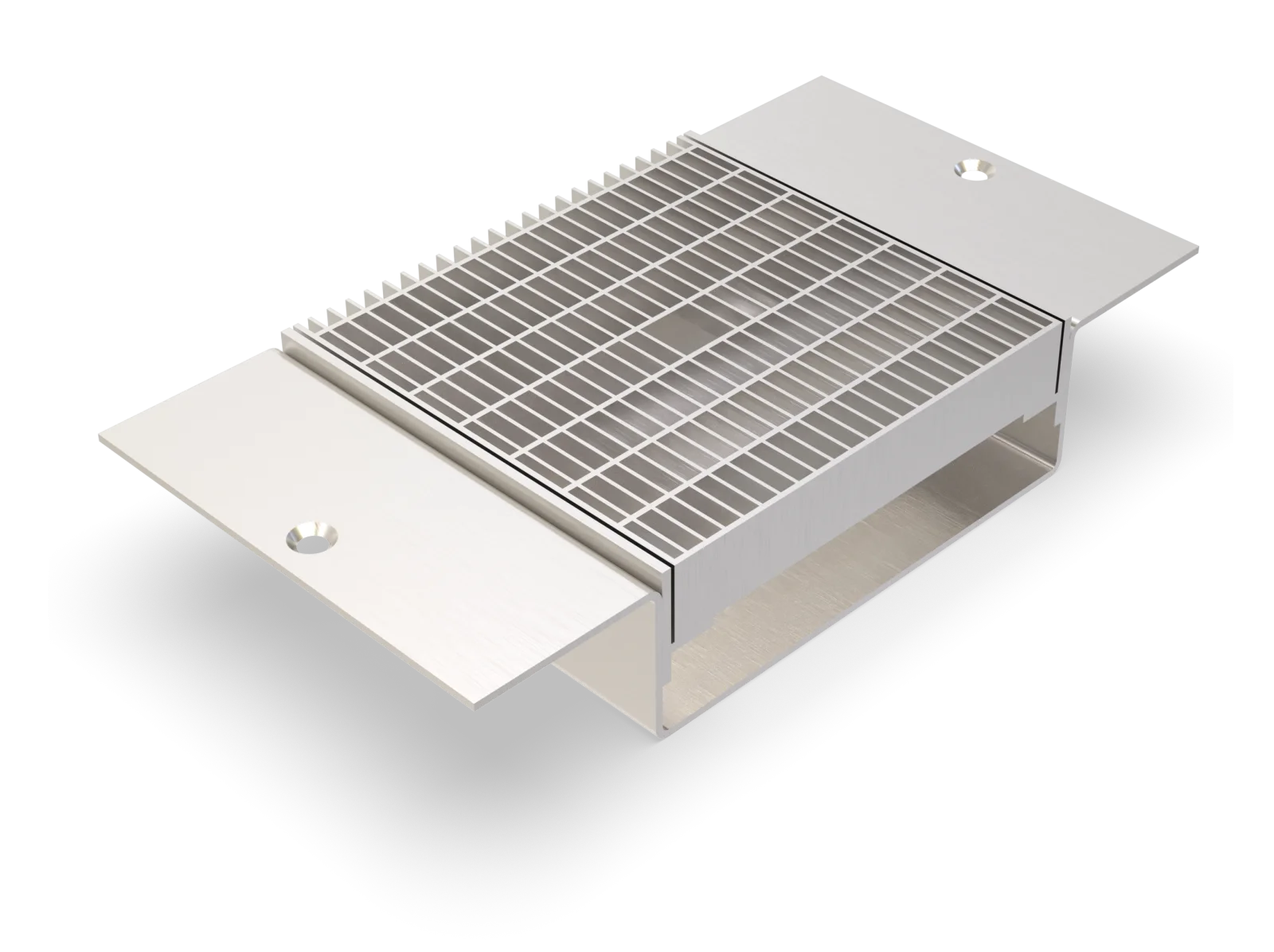

ALR.8.250/..

  • car-trafficable
  • with coating-flange

Inquiry data sheet

Für weitere Fragen stehen wir auch telefonisch zur Verfügung.

+49(0)8406/9294-0

ALR.8.250/..

Features

durable leak-proof, noncorrosive, high flexibility (variable lengths, heights and widths), mesh size of the steel grating in 30X10 mm or 30x30 mm possible

Applications

outdoor, multi-storey and underground park decks, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

hot-dip galvanised steel, high-grade steel V4A (on request)

Covering Types

coating

trafficability

truck (on request)

Formed parts

Rinnen-Endstück (Flansch umlaufend oder Aufkantung), corner piece, T piece, cross piece, Rinnen-Ablauf, 2 lock per grid

Notes

Our engineers and technicians can be of assistance during installation on request.

A leak-proof welding of several gutter-parts happens in the course of installing at the building site.

For stainless steel gutters, the general cleaning and care instructions must be observed (see also www.buprofile.de - Download section).

Technical data
Material thickness gutter:
4 mm
Material thickness mounting bracket:
5 mm
Supply length:
3 mtr
Steel grating width:
250 mm

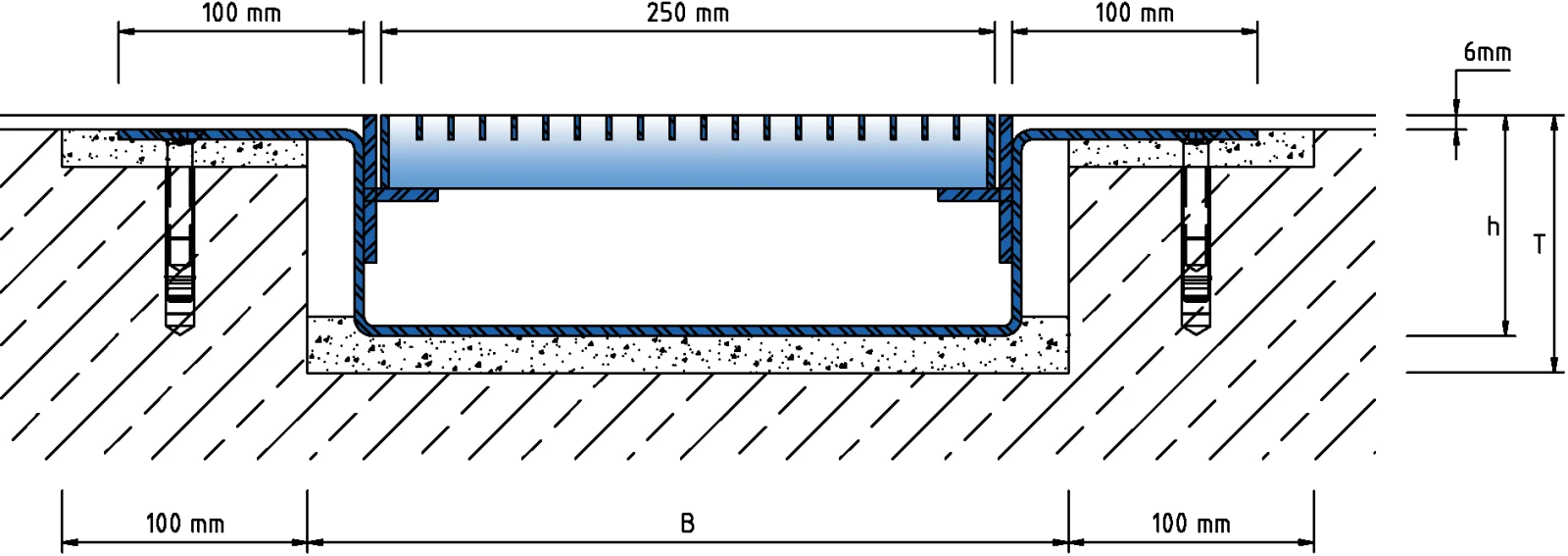

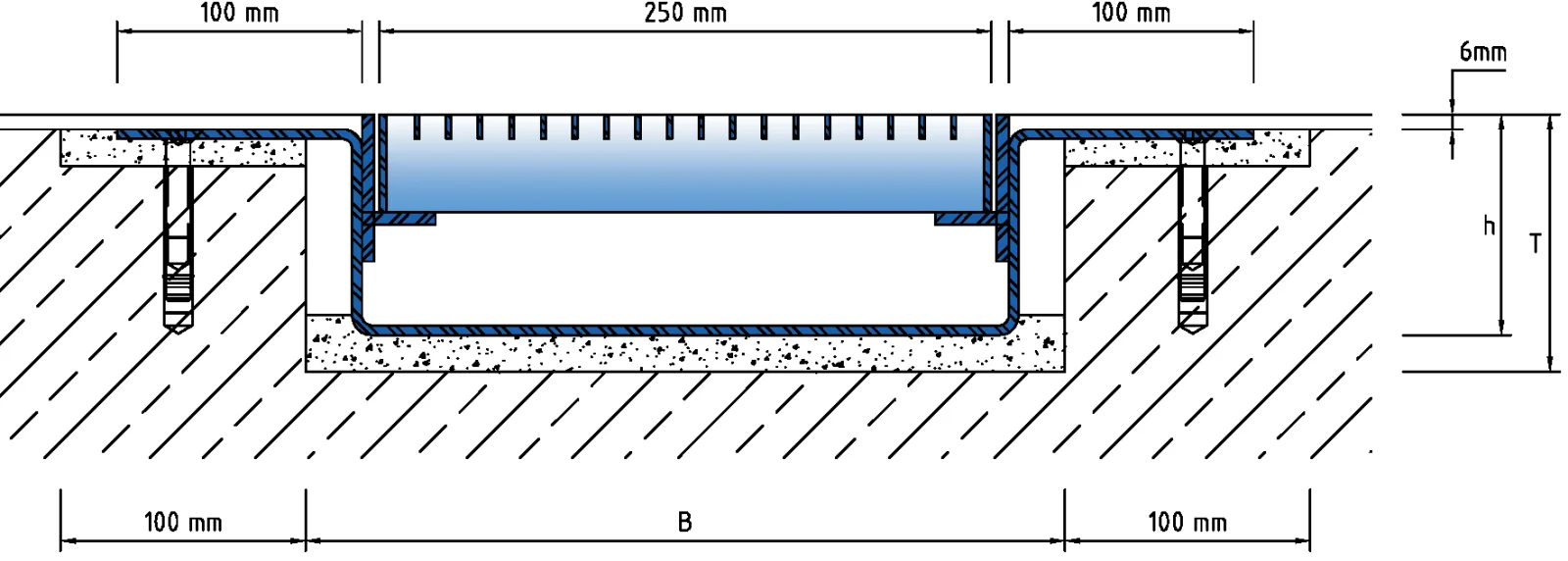

Technical drawing
alr-8-250-90.psd Subject to technical change without notice.
Designs
Article No. Profile height Recess (B⨉T)
ALR.8.250/90 90 mm 310 ⨉ 100 mm
ALR.8.250/120 120 mm 310 ⨉ 130 mm
ALR.8.250/150 150 mm 310 ⨉ 160 mm

Other heights on request.
