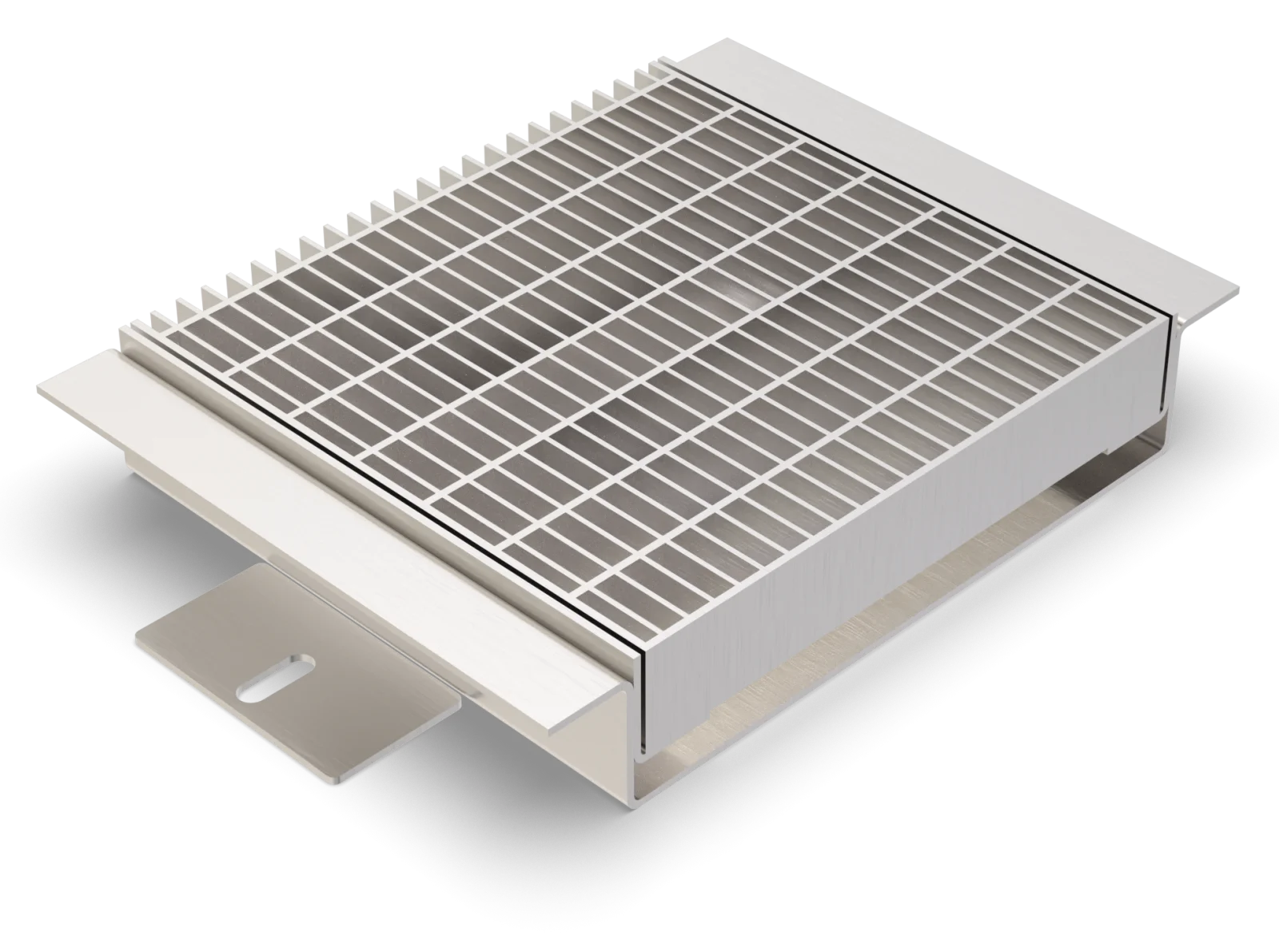

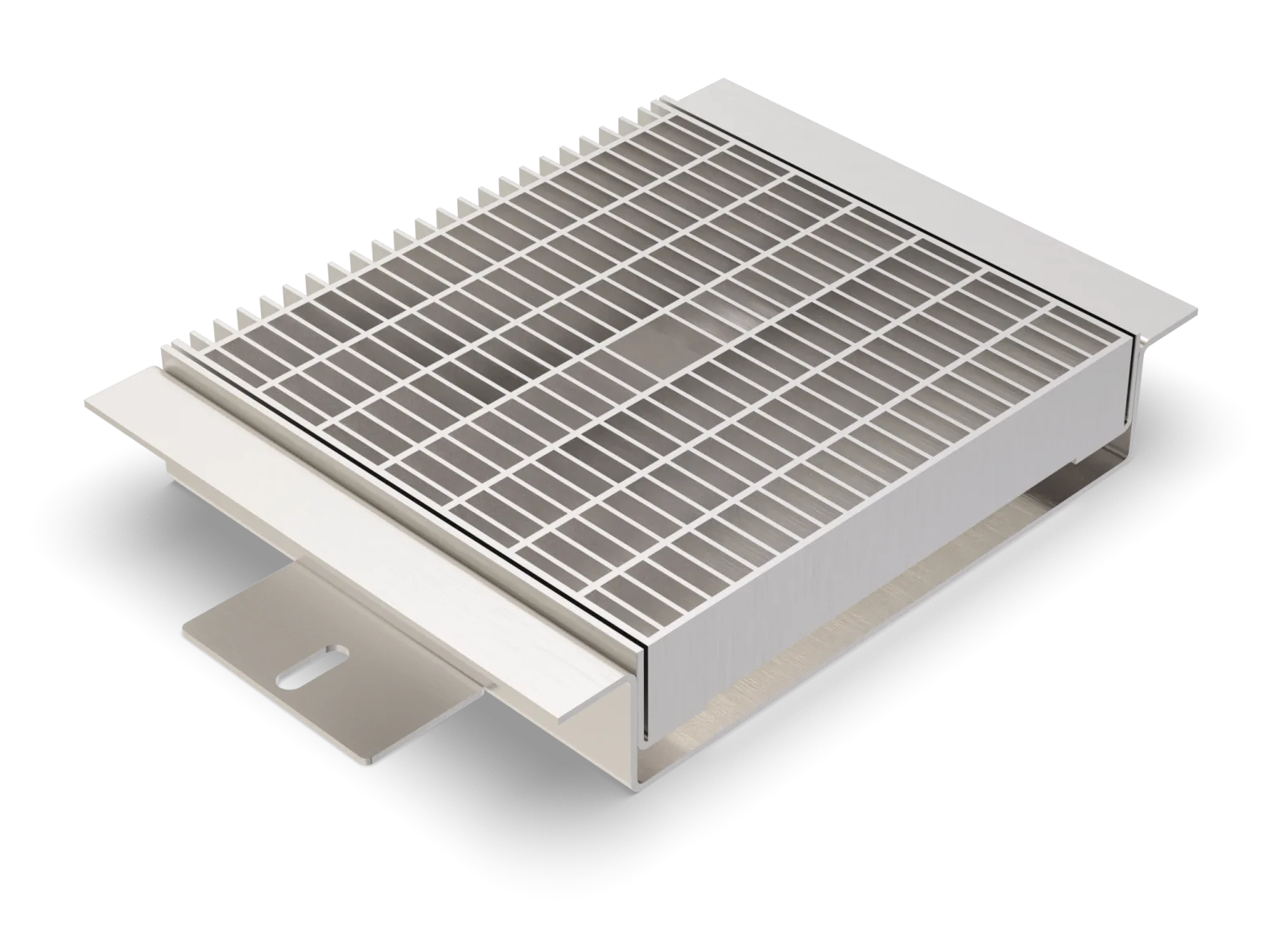

ALR.4.250/..

car-trafficable
with coating-flange

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

Closed Opens on Tu., 07. Jan. at 07:00

saturday: Closed
sunday (Betriebsurlaub): Closed
monday (Betriebsurlaub): Closed
tuesday (Betriebsurlaub): Closed
wednesday (Betriebsurlaub): Closed
thursday (Betriebsurlaub): Closed
friday (Betriebsurlaub): Closed

Features

permanently tight, corrosion-resistant, high flexibility (variable lengths, heights and widths), mesh size grating in 30x10 mm (30x30 mm on request)

Applications

parking decks, parking garages, underground garages, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

stainless steel V2A (V4A on request)

Covering Types

coating, screed, industrial coverings

trafficability

passenger cars

Formed parts

channel end piece (flange all around or upstand), corner piece, T-piece, cross piece, channel drain, 2-fold locking per grating

Notes

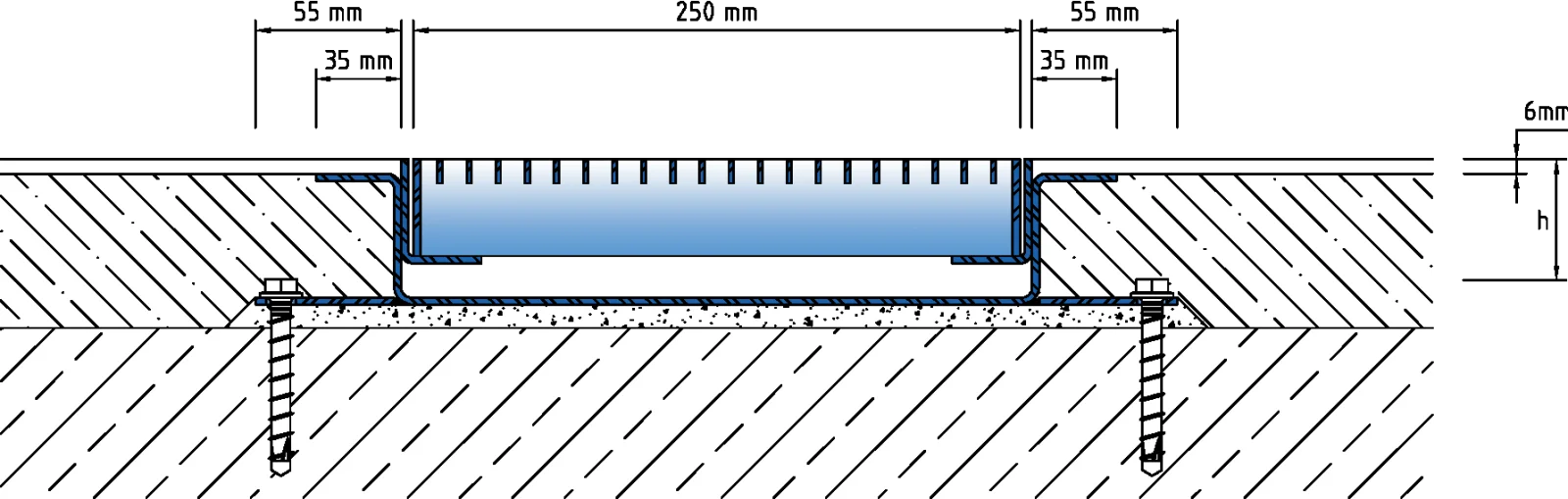

The individual channel elements are tightly welded together during installation on site.

Select the profile heights as follows:
Profile height 160 mm for concrete thicknesses 160 to 200 mm
Profile height 180 mm for concrete thicknesses 180 to 220 mm
Profile height 220 mm for concrete thicknesses 220 to 260 mm
Profile height 260 mm for concrete thicknesses 260 to 300 mm

For stainless steel, the general cleaning and care instructions must be observed (see also download area).

Installation by our own fitters recommended.
