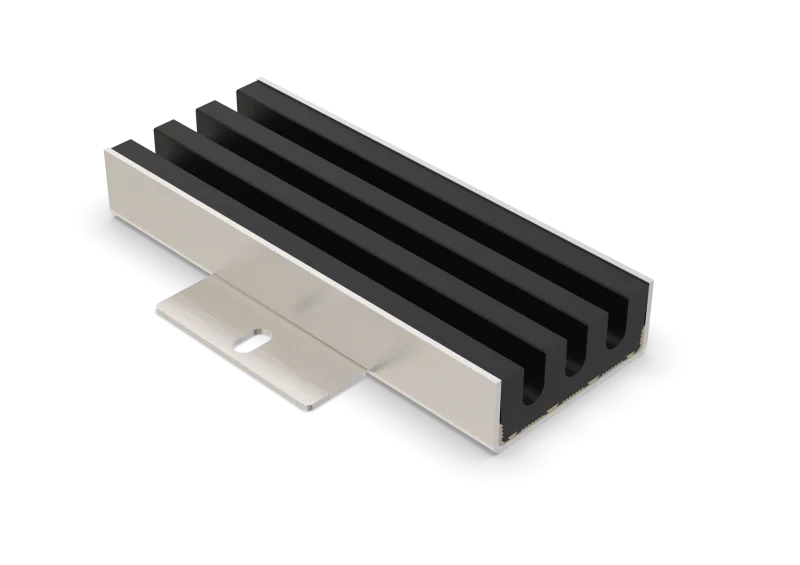

KMR.5.100/38

high load-bearing capacity
low installation height

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

Closed Opens at 07:00

wednesday: 07:00 - 16:00 Uhr
thursday: 07:00 - 16:00 Uhr
friday: 07:00 - 13:00 Uhr
saturday: Closed
sunday: Closed
monday: 07:00 - 16:00 Uhr
tuesday: 07:00 - 16:00 Uhr

Features

resistant to heavy loads, abrasion-, weather- and temperature-resistant (-40°C to +120°C), resistant to de-icing salt and waste water (alkalis, microbes, bacteria), permanently tight, corrosion-resistant

Applications

parking decks, parking garages, underground garages, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

stainless steel V2A (V4A on request), EPDM insert

Covering Types

coating, screed, industrial coverings

trafficability

D400

Formed parts

corner piece, T-piece, cross piece, channel end piece (end plate welded in at the front), channel drain

Notes

The individual channel elements are tightly welded together and the EPDM insert is installed during the installation process on the construction site.

Installation by our own fitters recommended.

Technical data

Material thickness channel body:: 3 mm
Supply length:: 3 mtr
Comb channel width:: 98 mm

Designs

Article No.	Channel height (h)	Recess (BxT)
KMR.5.100/38	38 mm	210 x 48 mm

Technical design — Subject to technical change without notice

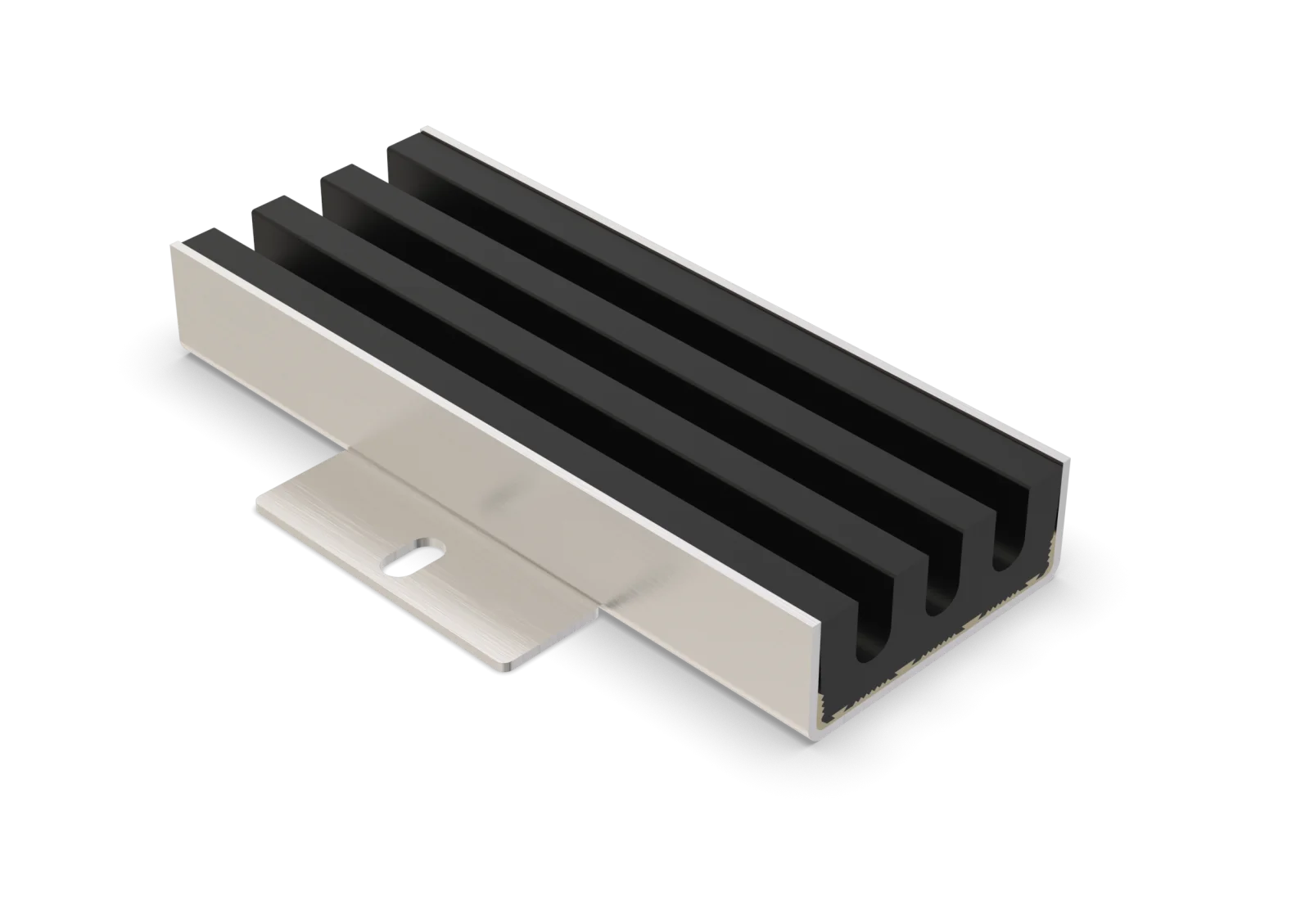

KMR.5.100/38
