Features

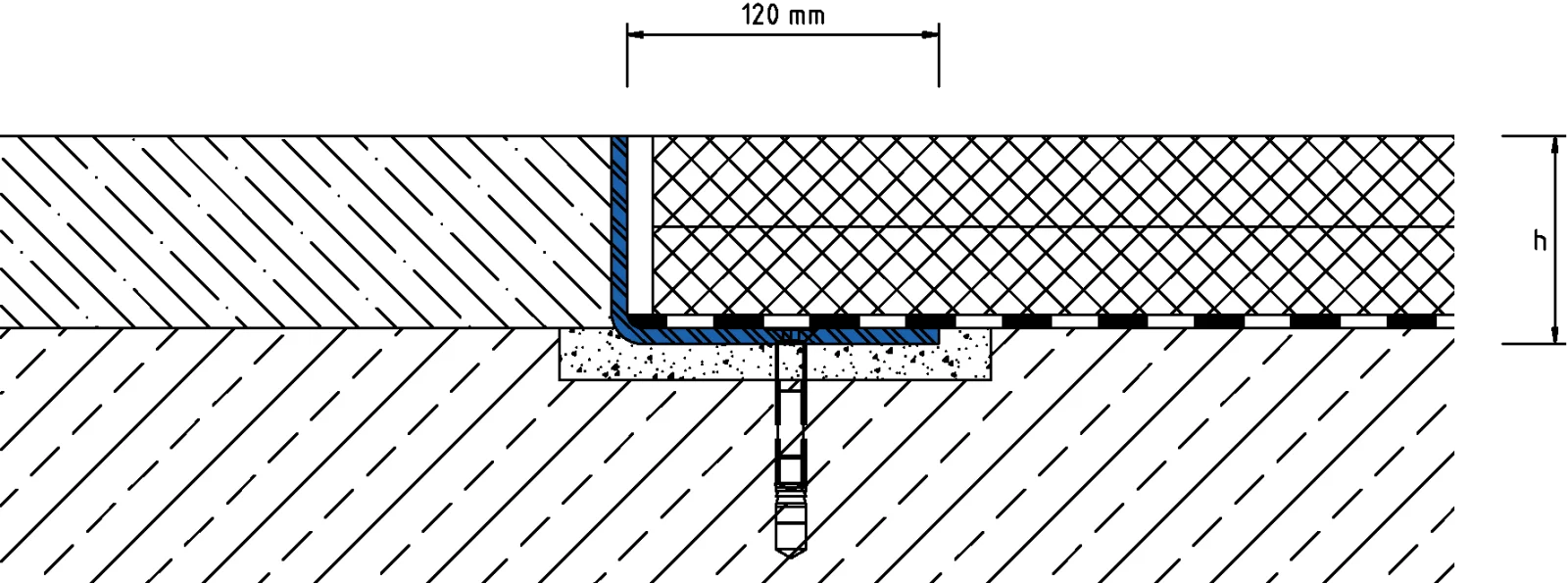

For separating different types of flooring and coverings. L-shaped edged design.

Applications

parking decks, parking garages, underground garages, ramp crossings, pedestrian bridges, all industrial applications, shopping centres, railway stations, airports, residential, office and administration buildings

Material

hot-dip galvanised steel, stainless steel V2A (V4A on request)

Covering Types

asphalt, screed, natural and stone slabs

Formed parts

corner piece, end plate

Notes

Also available in material thicknesses 5 mm, 6 mm and 8 mm.

Support leg perforated and lowered.

Adhesive flange joints must be fully welded and ground flat on the sealing side.

Technical data

Material/sheet thickness:: 4 mm
Supply length:: 3 mtr

Designs

Article No.	Height (h)	Recess (BxT)
Klebeflanschwinkel	40 mm	150 x 20 mm
Klebeflanschwinkel	50 mm	150 x 20 mm
Klebeflanschwinkel	60 mm	150 x 20 mm
Klebeflanschwinkel	70 mm	150 x 20 mm
Klebeflanschwinkel	80 mm	150 x 20 mm
Klebeflanschwinkel	90 mm	150 x 20 mm
Klebeflanschwinkel	100 mm	150 x 20 mm
Klebeflanschwinkel	120 mm	150 x 20 mm

Special heights on request.

Technical design — Subject to technical change without notice

Klebeflanschwinkel

Downloads

data sheet PDF

KLEBEFLANSCH.dwg Auto CAD
