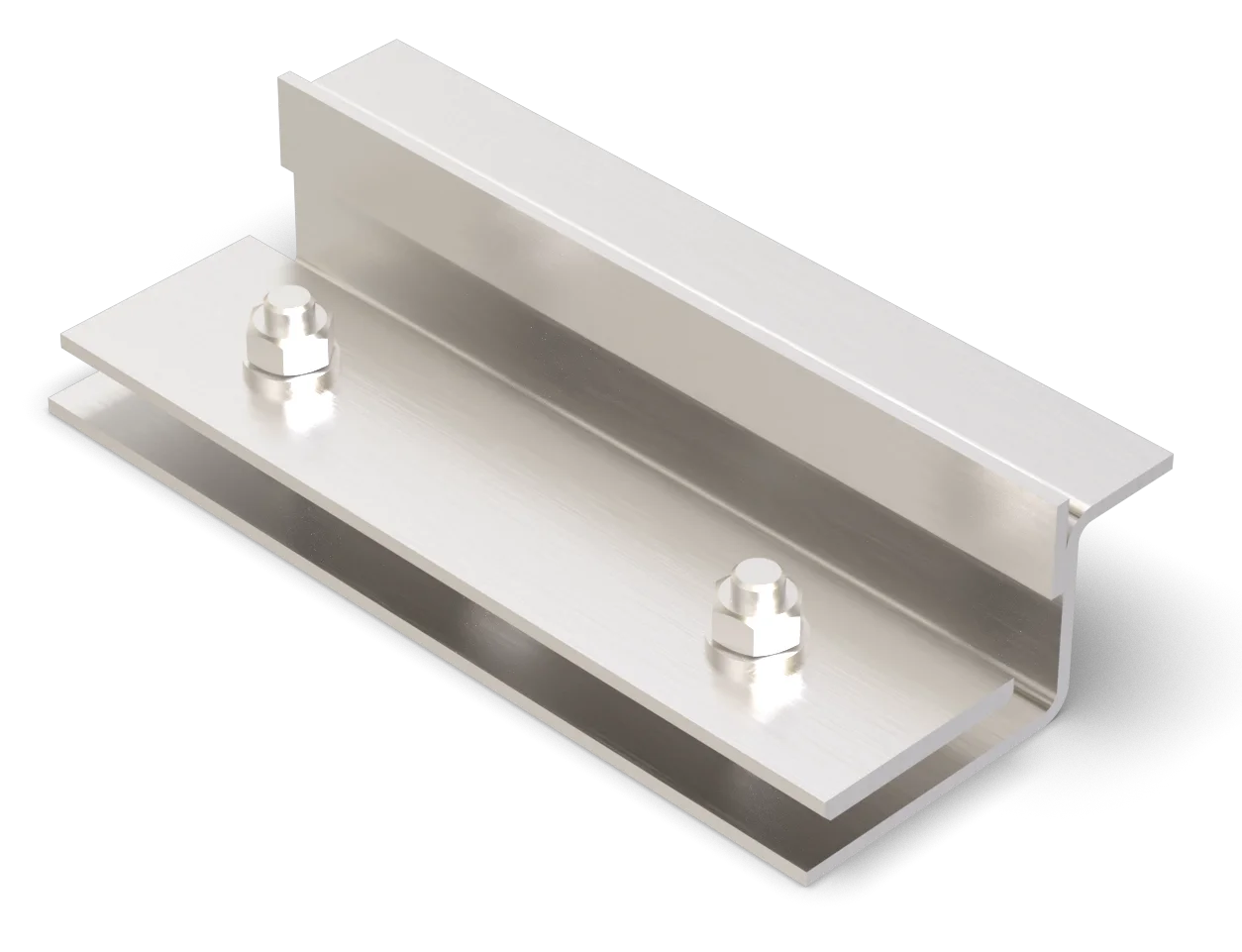

BTP1/..

Features

high edge protection due to steel edges t=10 mm

Applications

parking decks, parking garages, underground garages, ramp crossings, pedestrian bridges, all industrial applications, shopping centres, railway stations, airports, residential, office and administration buildings

Material

hot-dip galvanised steel, stainless steel V2A (V4A on request)

Covering Types

asphalt, coating, screed, natural and stone slabs, bitumen welding membrane, liquid plastic

trafficability

passenger cars, trucks, fork-lifts

Formed parts

corner piece, end plate

Notes

Support leg perforated and lowered.

Adhesive flange joints must be fully welded and ground flat on the sealing side.
