ALR.8.120/..

high load-bearing capacity
with coating-flange

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

open Closes at 16:00

thursday: 07:00 - 16:00 Uhr
friday: 07:00 - 13:00 Uhr
saturday: Closed
sunday: Closed
monday: 07:00 - 16:00 Uhr
tuesday: 07:00 - 16:00 Uhr
wednesday: 07:00 - 16:00 Uhr

Features

permanently tight, corrosion-resistant, high flexibility (variable lengths, heights and widths), grating with mesh size 30x10 mm (30x30 mm on request), grid lock inclusive

Applications

parking decks, parking garages, underground garages, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

hot-dip galvanised steel, stainless steel V2A (V4A on request)

Covering Types

coating

trafficability

passenger cars (trucks on request)

Formed parts

corner piece, T-piece, cross piece, channel end piece (flange all around or upstand), channel drain

Notes

The individual channel elements are tightly welded together during installation on site.

For stainless steel, the general cleaning and care instructions must be observed (see also download area).

Installation by our own fitters recommended.

Technical data

Material thickness channel body:: 4 mm
Material thickness mounting bracket:: 5 mm
Supply length:: 3 mtr
Steel grating width:: 120 mm

Designs

Article No.	Channel height (h)	Recess (BxT)
ALR.8.120/50	50 mm	180 x 65 mm
ALR.8.120/60	60 mm	180 x 75 mm
ALR.8.120/90	90 mm	180 x 105 mm
ALR.8.120/120	120 mm	180 x 135 mm

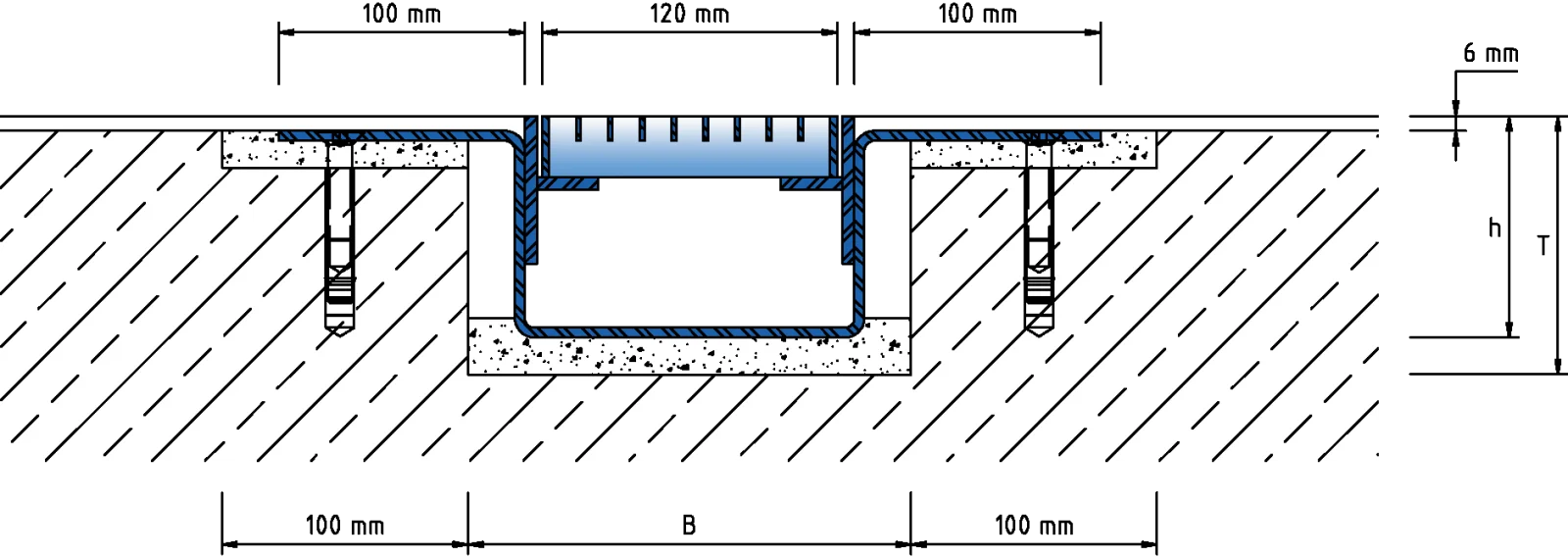

Technical design — Subject to technical change without notice

ALR.8.120/..

Downloads

data sheet PDF

VZ ALR.8.120.60/90.doc Tender text

V2A ALR.8.120.60/90.doc Tender text

V4A ALR.8.120.60/90.doc Tender text

ALR.8.120/60.dwg Auto CAD

ALR.8.120/90.dwg Auto CAD

ALR.8.pdf Installation suggestion
