ALR.5.200/..

car-trafficable
low installation height

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

Closed Opens on Wednesday at 07:00

friday (Betriebsurlaub): Closed
saturday (Betriebsurlaub): Closed
sunday (Betriebsurlaub): Closed
monday (Betriebsurlaub): Closed
tuesday (Betriebsurlaub): Closed
wednesday: 07:00 - 16:00 Uhr
thursday: 07:00 - 16:00 Uhr

Features

permanently tight, corrosion-resistant, high flexibility (variable lengths, heights and widths), grating with nominal mesh size 30x10 (30x30 on request), grid lock inclusive

Applications

parking decks, parking garages, underground garages, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

stainless steel V2A (V4A on request)

Covering Types

coating, screed, industrial coverings

trafficability

C250

Formed parts

corner piece, T-piece, cross piece, channel end piece (end plate welded in at the front), channel drain

Notes

The individual channel elements are tightly welded together during installation on site.

For stainless steel, the general cleaning and care instructions must be observed (see also download area).

Installation by our own fitters recommended.

Technical data

Material/sheet thickness:: 3 mm
Supply length:: 3 mtr
Steel grating width:: 200 mm

Designs

Article No.	Channel height (h)	Recess (BxT)
ALR.5.200/50	50 mm	320 x 60 mm
ALR.5.200/60	60 mm	320 x 70 mm
ALR.5.200/80	80 mm	320 x 95 mm
ALR.5.200/100	100 mm	320 x 115 mm

Special heights on request.

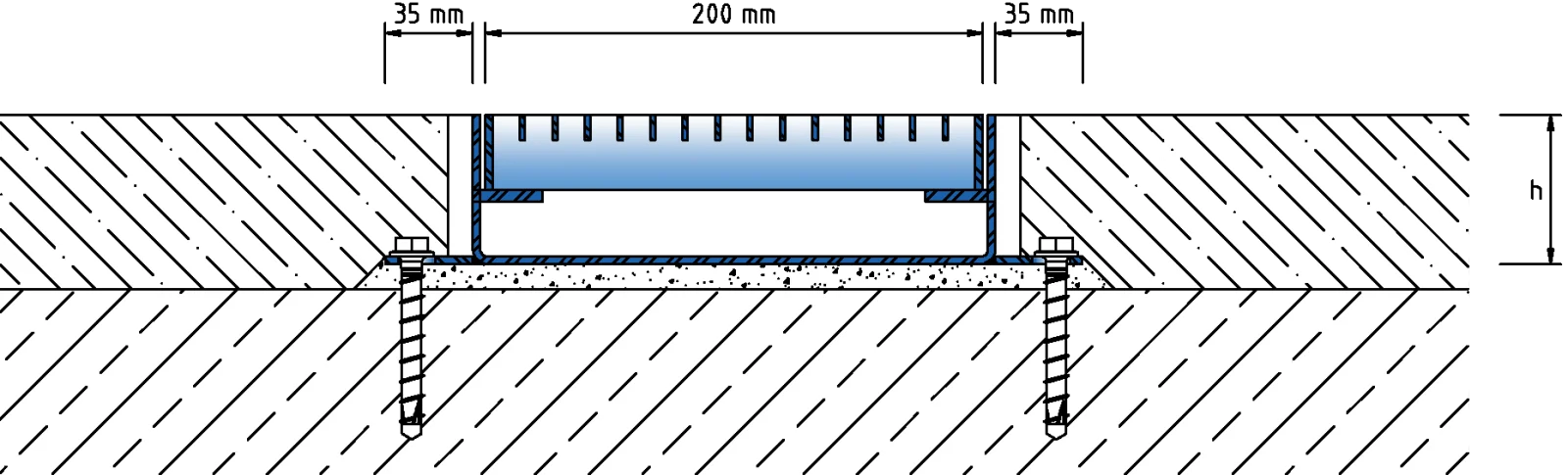

Technical design — Subject to technical change without notice

ALR.5.200/..

Downloads

data sheet PDF

V2A ALR.5.200/60.doc Tender text

V2A ALR.5.200/80.doc Tender text

V4A ALR.5.200/60.doc Tender text

V4A ALR.5.200/80.doc Tender text

ALR.5.200/60.dwg Auto CAD

ALR.5.200/80.dwg Auto CAD

ALR.5.pdf Installation suggestion
