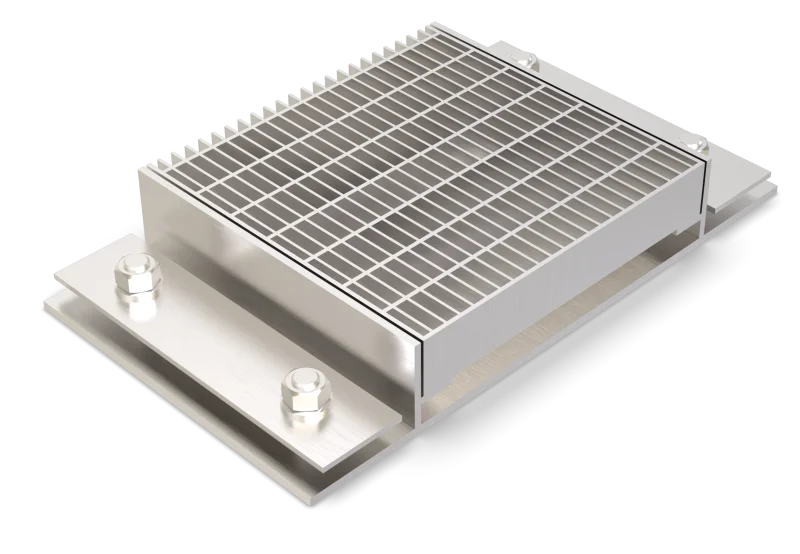

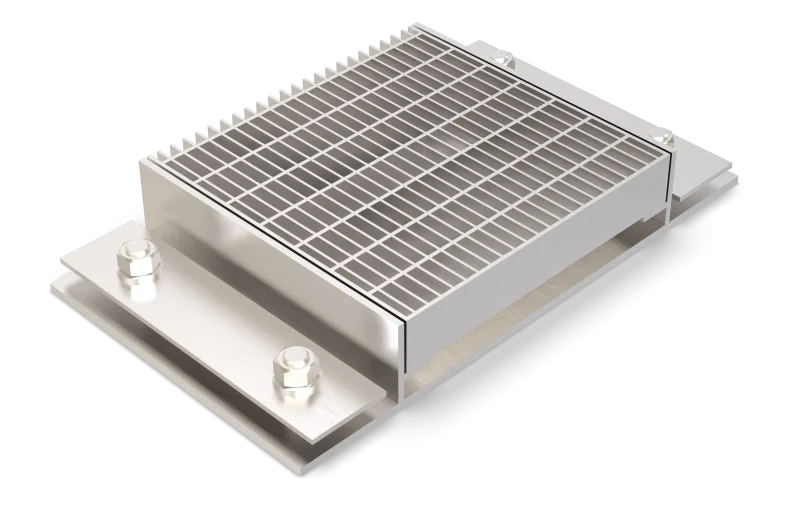

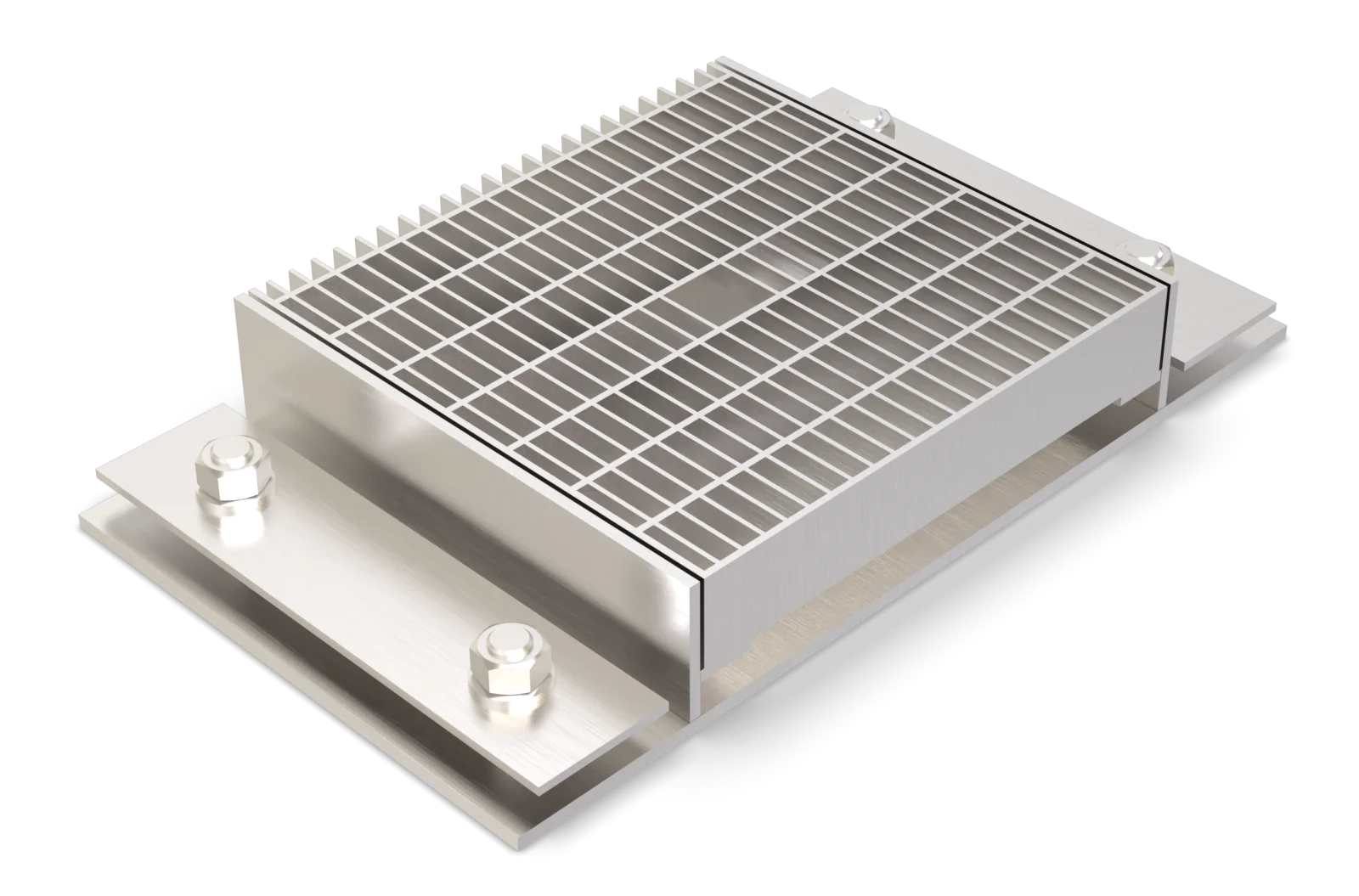

ALR.1.250/..

  • high load-bearing capacity
  • with loose/fixed flange

Inquiry data sheet

Für weitere Fragen stehen wir auch telefonisch zur Verfügung.

+49(0)8406/9294-0

ALR.1.250/..

Features

resistant to heavy loads, durable leak-proof, noncorrosive, high flexibility (variable lengths, heights and widths), mesh size of the steel grating in 30X10 mm or 30x30 mm possible

Applications

outdoor, multi-storey and underground park decks, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

hot-dip galvanised steel, high-grade steel V4A (on request)

Covering Types

asphalt, screed

trafficability

truck (on request)

Formed parts

Rinnen-Endstück (Flansch umlaufend oder Aufkantung), corner piece, T piece, cross piece, Rinnen-Ablauf, 2 lock per grid

Notes

Our engineers and technicians can be of assistance during installation on request.

A leak-proof welding of several gutter-parts happens in the course of installing at the building site.

drainage slots are possible (on request).

For stainless steel gutters, the general cleaning and care instructions must be observed (see also www.buprofile.de - Download section).

Technical data
Material thickness fixed flange:
6 mm
Material thickness vertical base:
5 mm
Supply length:
3 mtr
Steel grating width:
250 mm

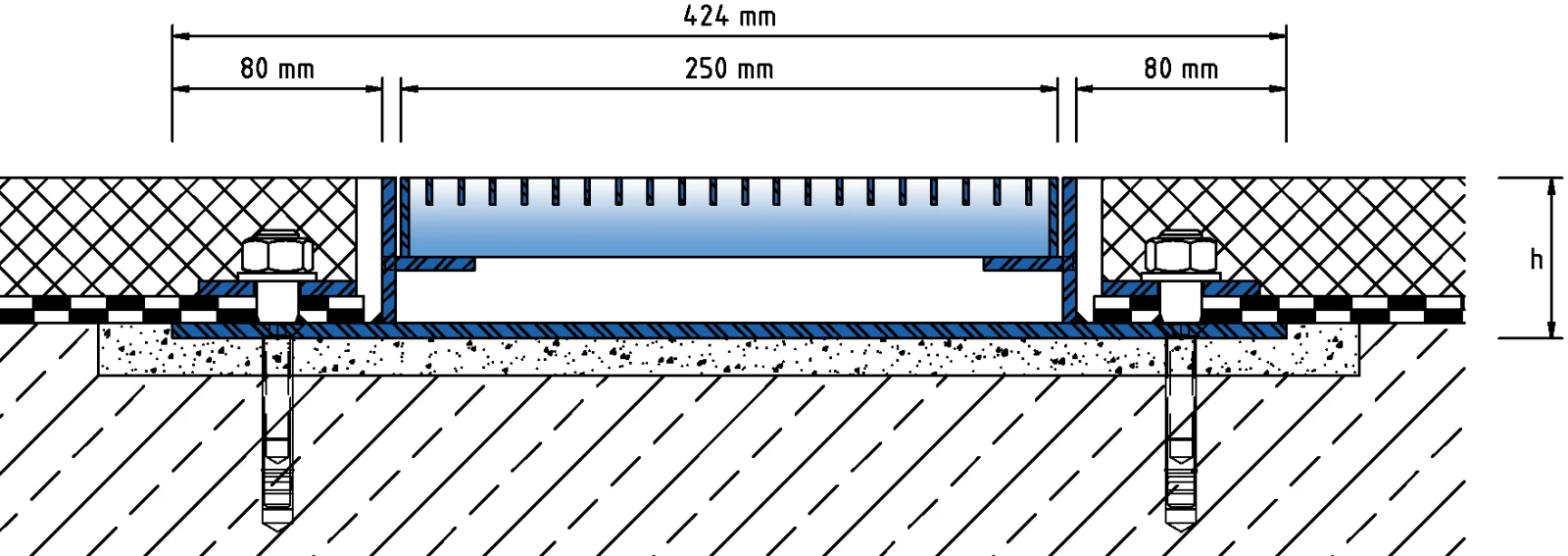

Technical drawing
alr-1-250-61.psd Subject to technical change without notice.
Designs
Article No. Rinnenhöhe Recess (B⨉T)
ALR.1.250/61 61 mm 480 ⨉ 20 mm
ALR.1.250/81 81 mm 480 ⨉ 20 mm

Other heights on request.
