Heavy-duty joint profiles

AL.5.210/20

for normal loads
low installation height
three-dimensional absorption of movements
solid full-aluminium structure

data sheet inquire now

We are also available by phone for further questions.

+49(0)8406/9294-0

Closed Opens on Tu., 07. Jan. at 07:00

saturday: Closed
sunday (Betriebsurlaub): Closed
monday (Betriebsurlaub): Closed
tuesday (Betriebsurlaub): Closed
wednesday (Betriebsurlaub): Closed
thursday (Betriebsurlaub): Closed
friday (Betriebsurlaub): Closed

Features

resistant to heavy loads, trafficable by fork-lift trucks, due to the special profile design, no bearing leg slips under the covering (this prevents the covering from tearing off in the case of thin coverings)

Applications

all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

aluminium

Covering Types

coating, concrete, screed, industrial coverings, natural and stone slabs

trafficability

industrial trucks (lifting trucks, fork-lifts etc.), passenger cars, trucks

Formed parts

corner piece, T-piece, cross piece

Notes

Depending on the floor covering, we recommend installing a grouting seal between the joint profile and the covering to prevent the hairline crack caused by the building physics.

Technical data

Movement horizontal:: 30 mm (-10/+20 mm)
Movement vertical:: 10 mm (±5 mm)
Visible width:: 210 mm
Maximal joint width:: 50 mm
Load rating:: wheel load 1000 kg up to Ø 150 mm, B = 100 mm
Load rating trucks:: 300 kN (DIN 1072)
Load rating forklifts:: 70 kN (DIN 1055-3)
Supply length:: 3 mtr

Designs

Article No.	Profile height (h)	Recess (BxT)
AL.5.210/20	20 mm	350 x 30 mm

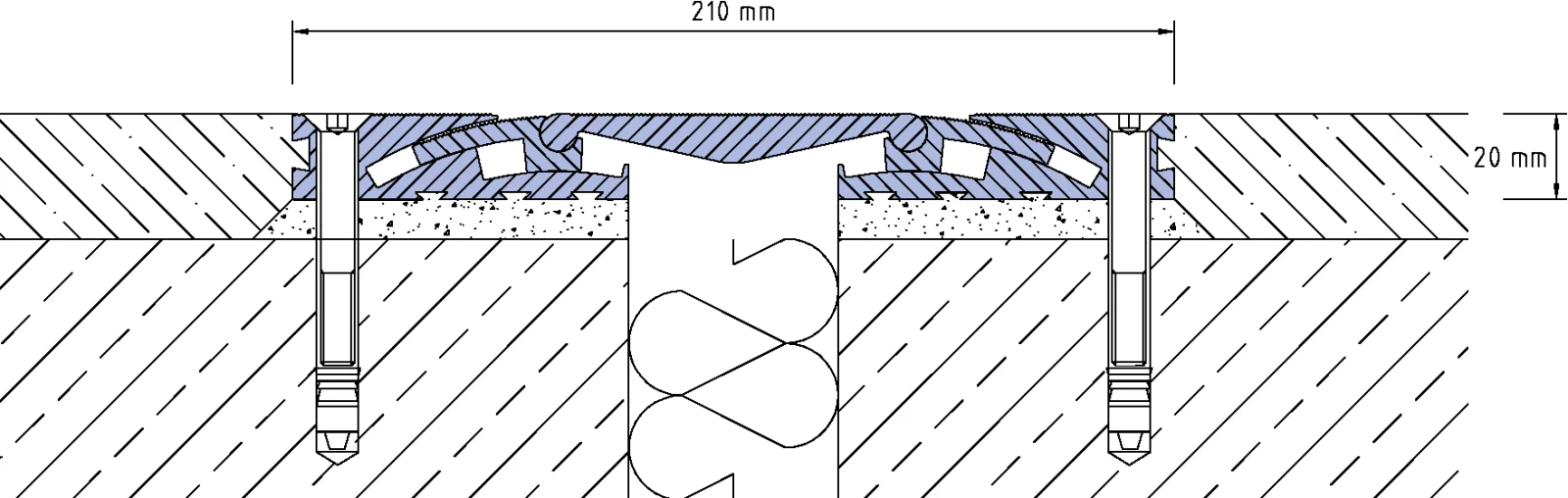

Technical design — Subject to technical change without notice

AL.5.210/20

Downloads

data sheet PDF

AL.5.210/20.doc Tender text

AL.5.210/20.dwg Auto CAD

AL.5 OB.pdf Installation suggestion
