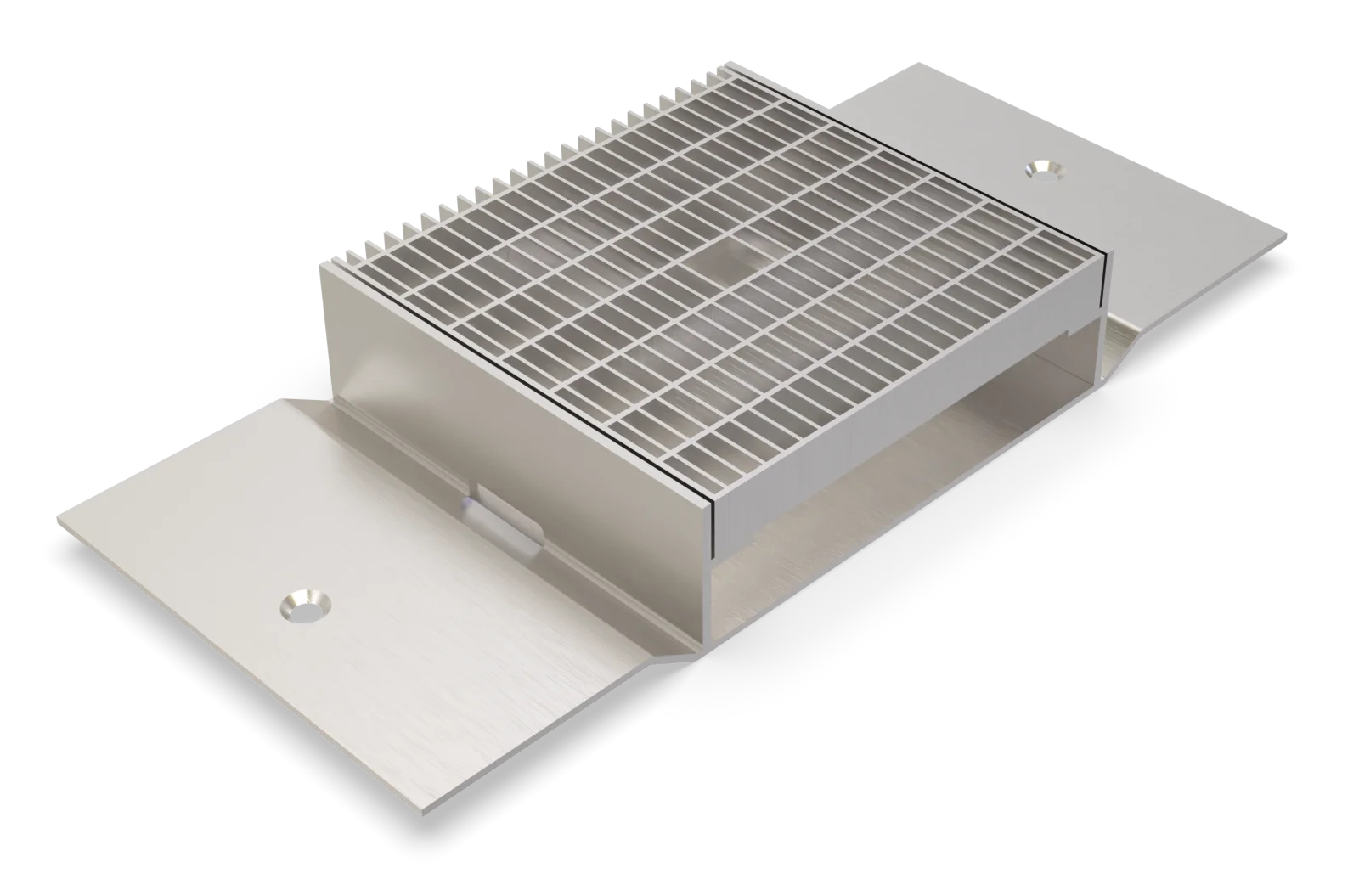

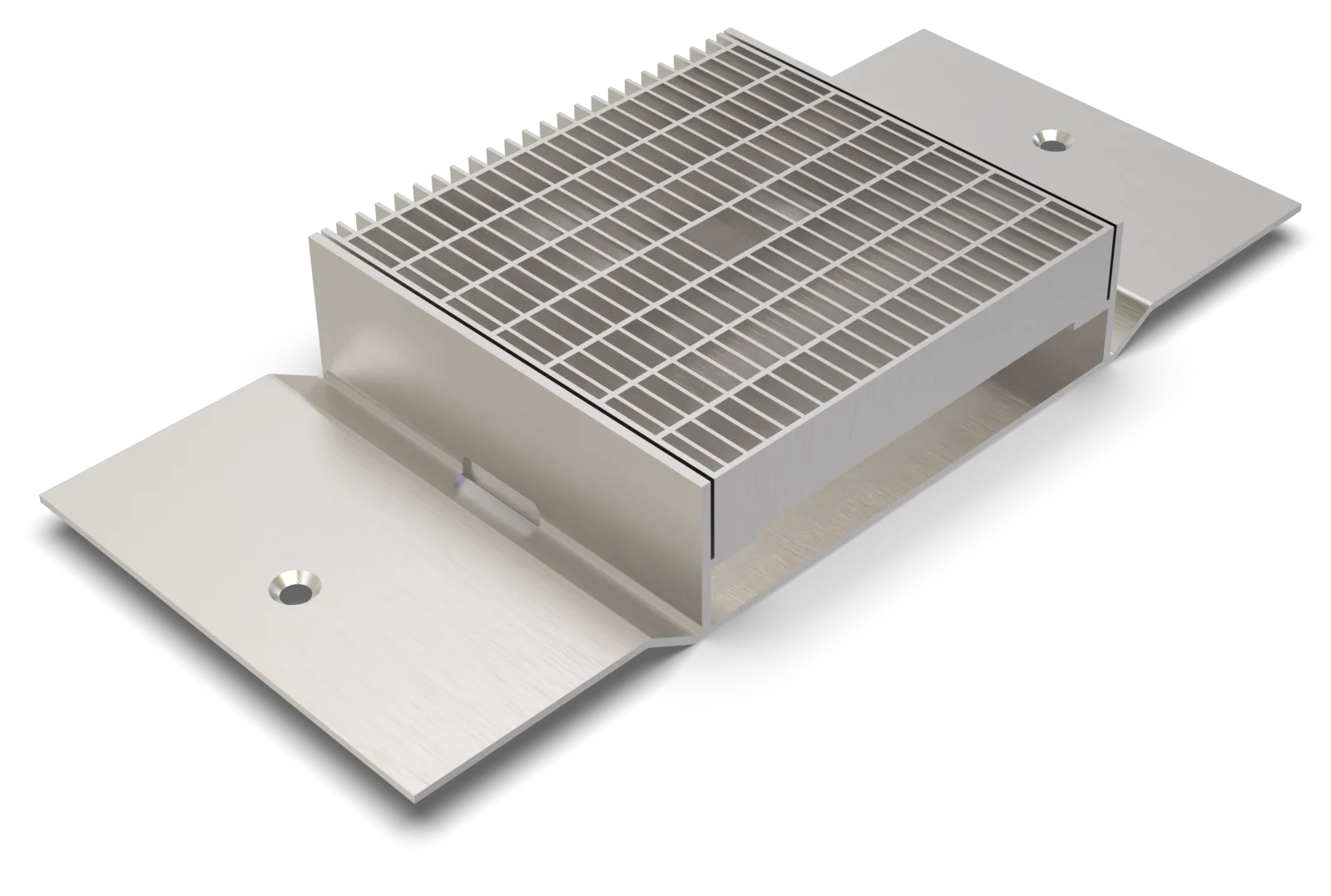

drainage channel
  • suitable for all types of covering
  • high load-bearing capacity
  • with adhering flange

Inquiry data sheet

We are also available by phone for further questions.




resistant to heavy loads, durable leak-proof, noncorrosive, high flexibility (variable lengths, heights and widths), mesh size of the steel grating in 30X10 mm or 30x30 mm possible


outdoor, multi-storey and underground park decks, all industrial applications, shopping centres, railway stations, airports, exhibition halls


hot-dip galvanised steel, high-grade steel V4A (on request)

Covering Types

asphalt, concrete, screed


truck (on request)

Formed parts

gutter end piece (flange all around or upstand), corner piece, T piece, cross piece, gutter drain, 2 lock per grid


A leak-proof welding of several gutter-parts happens in the course of installing at the building site.

drainage slots are possible (on request).

For stainless steel gutters, the general cleaning and care instructions must be observed (see also - Download section).

Our engineers and technicians can be of assistance during installation on request.

Technical data
Material thickness bonding flange:
4 mm
Material thickness vertical base:
5 mm
Supply length:
3 mtr
Steel grating width:
250 mm
Technical drawing
Subject to technical change without notice.
Article No. Gutter Height Recess (B⨉T)
ALR.9.250/79 79 mm 620 ⨉ 40 mm
ALR.9.250/99 99 mm 620 ⨉ 40 mm

Other heights on request.
