LFK9

  • with loose/fixed flange
  • edge termination

Inquiry data sheet

Für weitere Fragen stehen wir auch telefonisch zur Verfügung.

+49(0)8406/9294-0

LFK9

Applications

outdoor, multi-storey and underground park decks, ramp accesses, pedestrian bridges, all industrial applications, shopping centres, railway stations, airports

Material

hot-dip galvanised steel, high-grade steel V4A (on request)

Covering Types

asphalt, concrete, screed

Formed parts

end piece, corner piece, T piece, cross piece

Notes

stud bolt M12x35 mm with lining disc and nut

loose flange, l = 1500 mm

Solid flange joints should be fully welded through and ground flat on the sealing side.

Technical data
Material thickness fixed flange:
8 mm
Material thickness loose flange:
6 mm
Supply length:
3 mtr

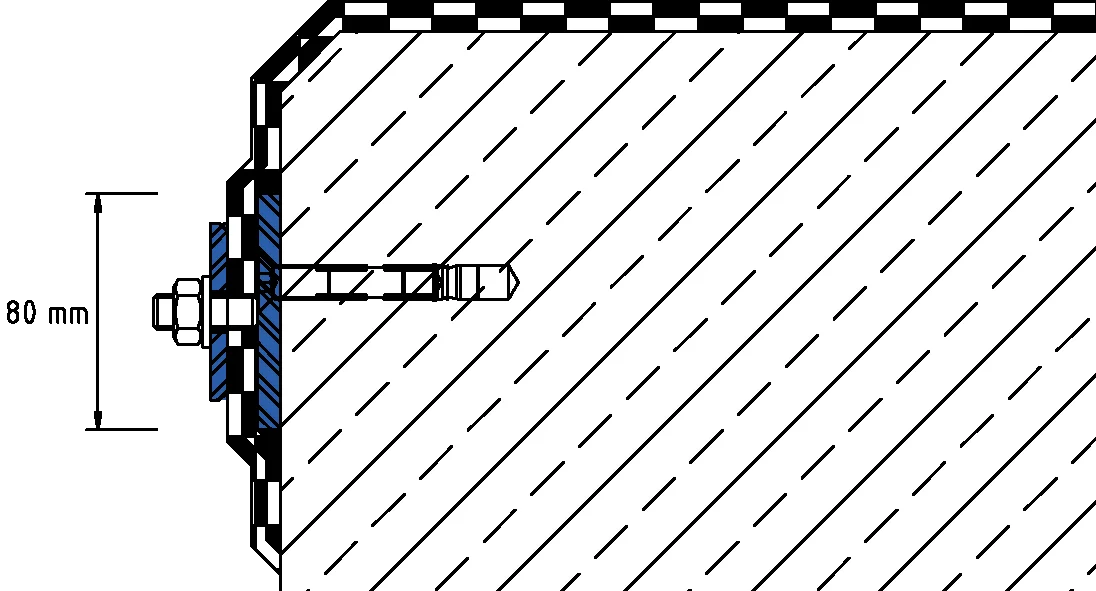

Technical drawing
lfk9.psd Subject to technical change without notice.
Designs
Article No. Recess (B⨉T)
LFK9 120 ⨉ 20 mm
Downloads

data sheet

LFK9

LV-text (Word-format)

VZ LFK9.doc
V2A LFK9.doc
V4A LFK9.doc
