ALR.1.150/..

drainage channel
  • high load-bearing capacity
  • with loose/fixed flange

Inquiry data sheet

We are also available by phone for further questions.

+49(0)8406/9294-0

ALR.1.150/..

Features

resistant to heavy loads, durable leak-proof, noncorrosive, high flexibility (variable lengths, heights and widths), mesh size of the steel grating in 30X10 mm or 30x30 mm possible

Applications

outdoor, multi-storey and underground park decks, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

hot-dip galvanised steel, high-grade steel V4A (on request)

Covering Types

asphalt, screed

trafficability

truck (on request)

Formed parts

gutter end piece (flange all around or upstand), corner piece, T piece, cross piece, gutter drain, 2 lock per grid

Notes

A leak-proof welding of several gutter-parts happens in the course of installing at the building site.

drainage slots are possible (on request).

For stainless steel gutters, the general cleaning and care instructions must be observed (see also www.buprofile.de - Download section).

Our engineers and technicians can be of assistance during installation on request.

Technical data
Material thickness fixed flange:
6 mm
Material thickness vertical base:
5 mm
Supply length:
3 mtr
Steel grating width:
150 mm

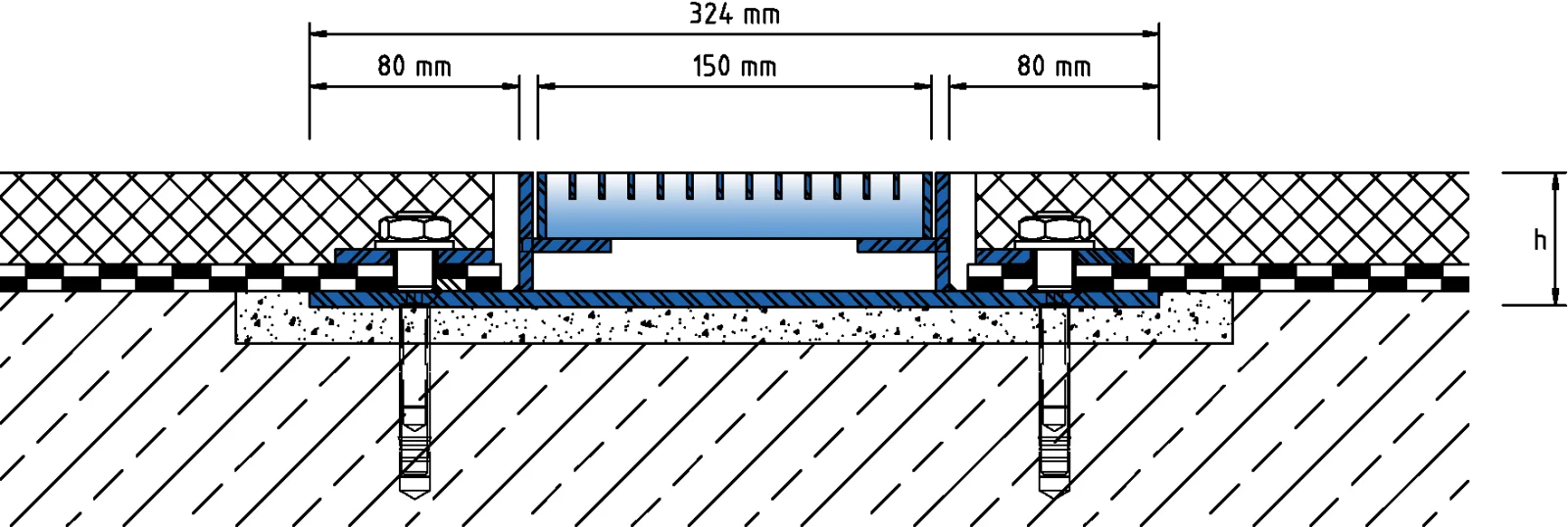

Technical drawing
Subject to technical change without notice.
Designs
Article No. Gutter Height Recess (B⨉T)
ALR.1.150/51 51 mm 380 ⨉ 20 mm
ALR.1.150/61 61 mm 380 ⨉ 20 mm
ALR.1.150/81 81 mm 380 ⨉ 20 mm

Other heights on request.
