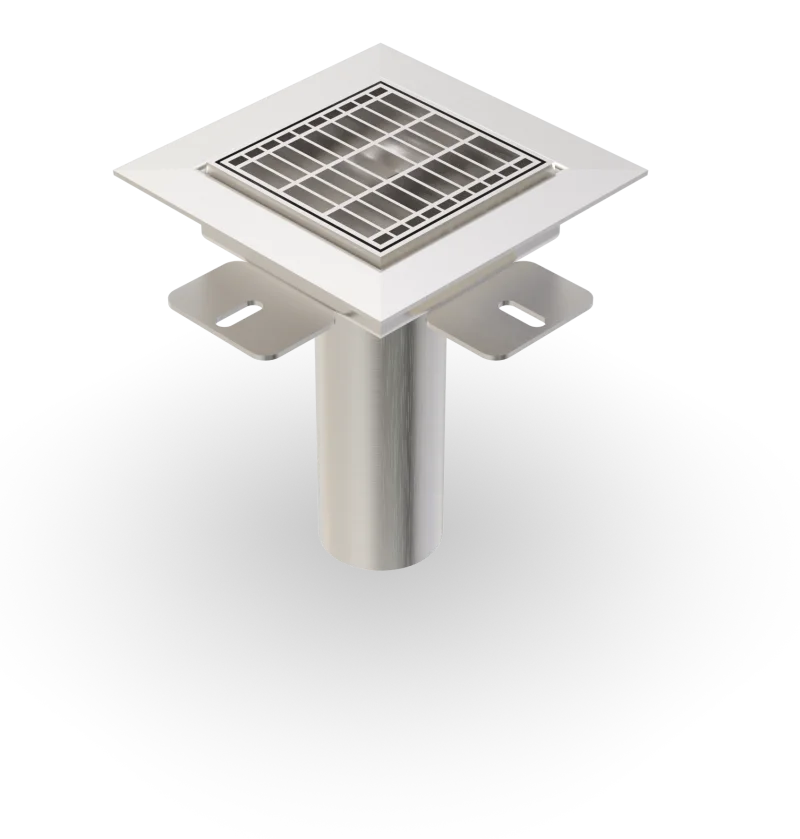

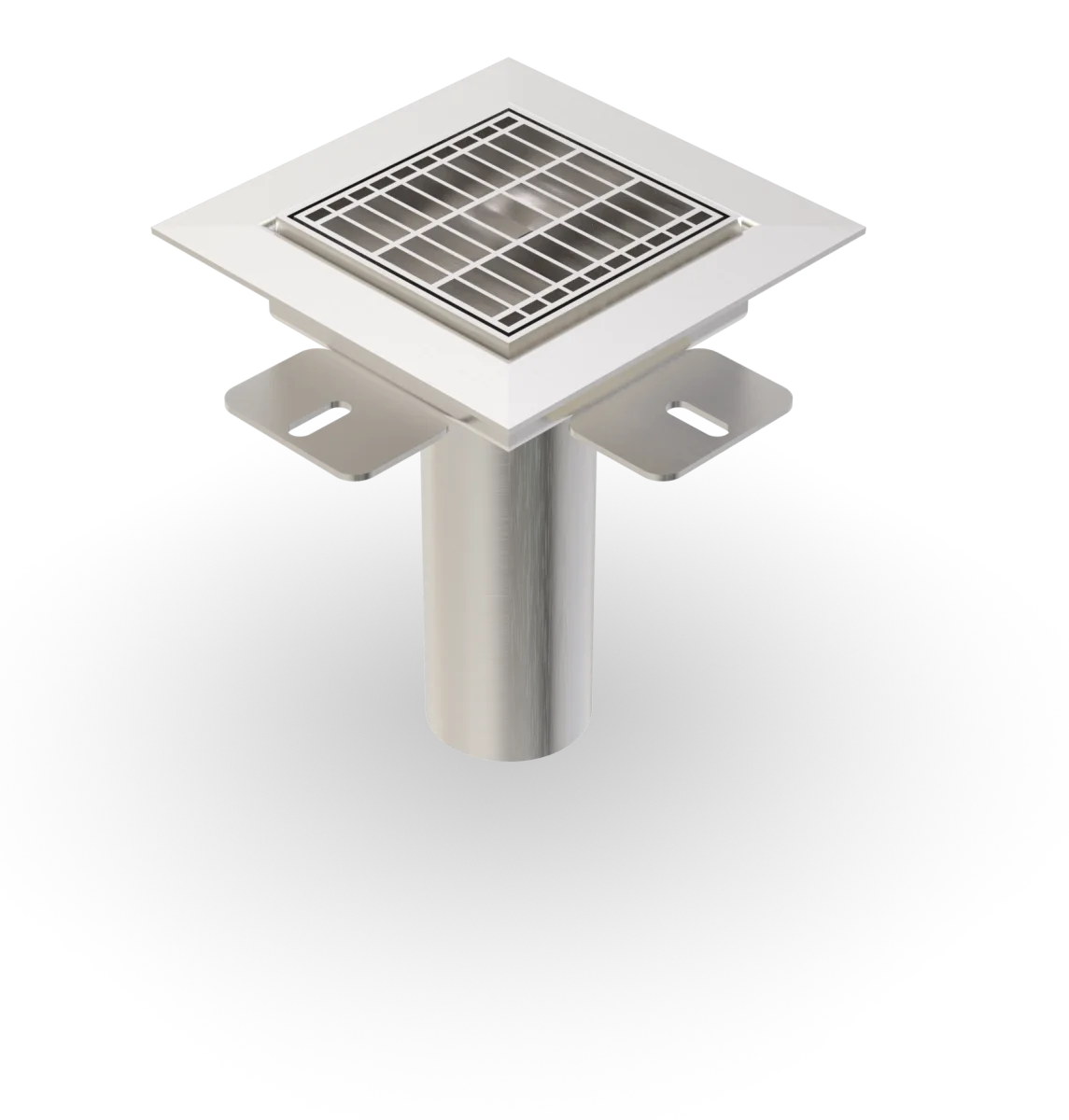

ALK.4.120/..

  • drain body
  • low profile height
  • with coating-flange

Inquiry data sheet

Für weitere Fragen stehen wir auch telefonisch zur Verfügung.

+49(0)8406/9294-0

ALK.4.120/..

Features

durable leak-proof, noncorrosive, high flexibility (variable lengths, heights and widths), mesh size of the steel grating in 30X10 mm or 30x30 mm possible, grate adjustment possible on any spot, drain pipe DN100, length 200 mm

Applications

outdoor, multi-storey and underground park decks, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

high-grade steel V4A (on request)

Covering Types

coating, screed, industrial covering

trafficability

passenger car

Scope of supply

grid lock

Notes

Our engineers and technicians can be of assistance during installation on request.

Technical data
Material thickness gutter:
4 mm
Material thickness mounting bracket:
3 mm
Steel grating width:
120 mm
Technical drawing
alk-4-120-50.tif Subject to technical change without notice.
Designs
Article No. Profile height Recess B⨉T
ALK.4.120/50 50 mm 300 ⨉ 60 mm
ALK.4.120/60 60 mm 300 ⨉ 70 mm

Other heights on request.
