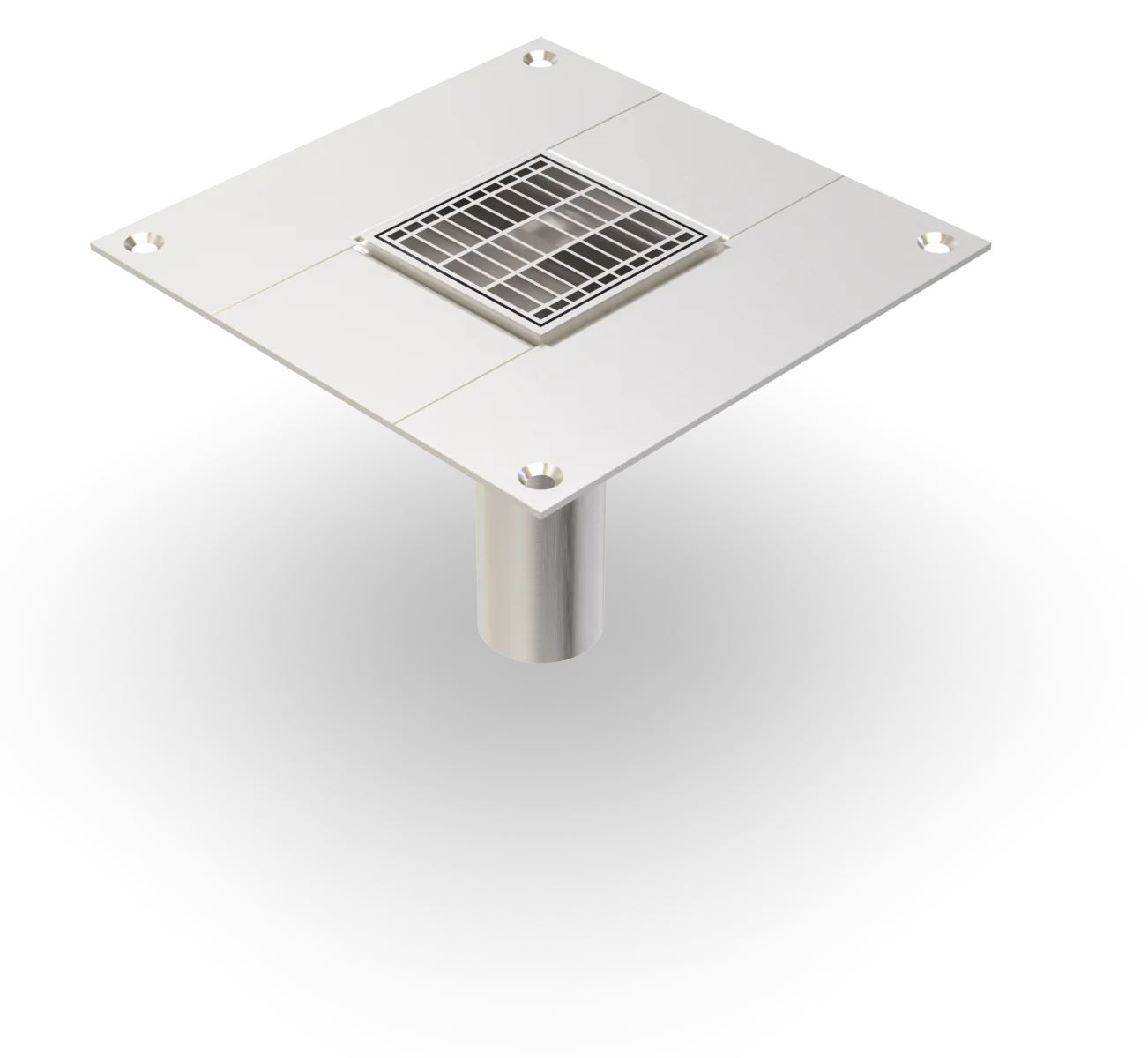

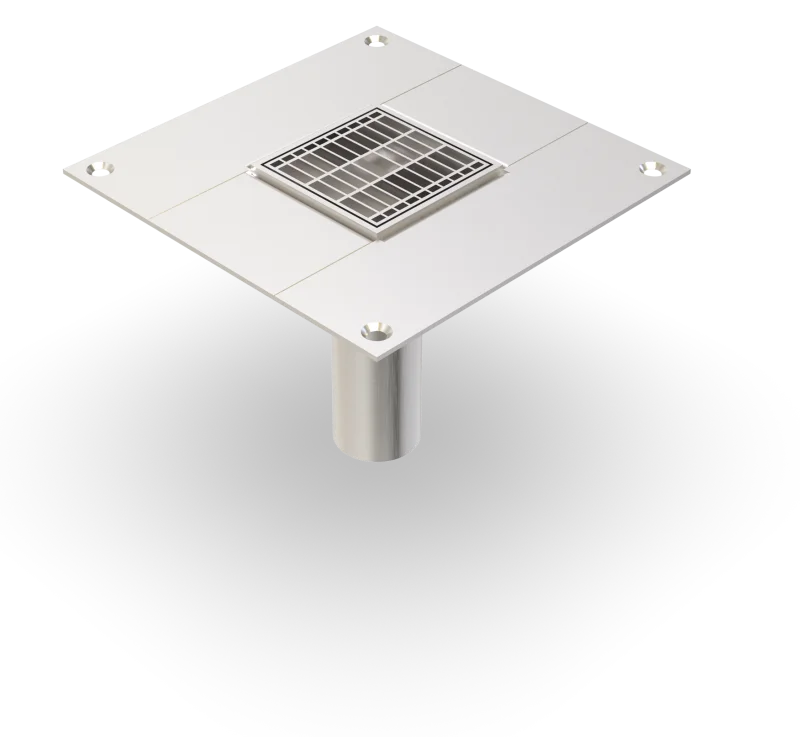

ALK.8.120/..

drain body
  • high load-bearing capacity
  • with coating-flange

Inquiry data sheet

We are also available by phone for further questions.

+49(0)8406/9294-0

ALK.8.120/..

Features

resistant to heavy loads, dauerhaft dicht, korrosionsbeständig, hohe Flexibilität (variable Breiten und Höhen), mesh size of the steel grating in 30X10 mm or 30x30 mm possible, grate adjustment inclusive, drain pipe DN70, length 200 mm

Applications

outdoor, multi-storey and underground park decks, all industrial applications, shopping centres, railway stations, airports, exhibition halls

Material

hot-dip galvanised steel, high-grade steel V4A (on request)

Covering Types

coating

trafficability

truck (on request)

Notes

For stainless steel gutters, the general cleaning and care instructions must be observed (see also www.buprofile.de - Download section).

Technical data
Material thickness gutter:
4 mm
Material thickness vertical base:
5 mm
Steel grating width:
120 mm

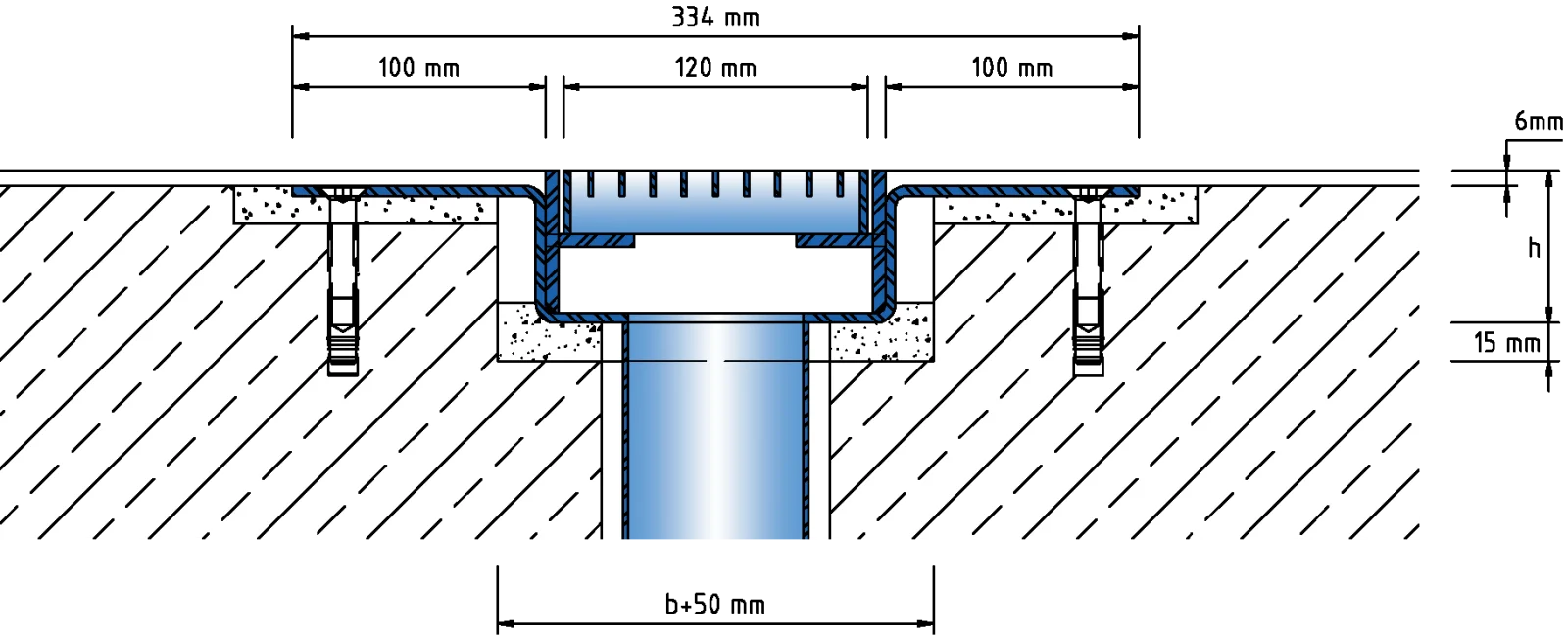

Technical drawing
Subject to technical change without notice.
Designs
Article No. Gutter Height Recess (B⨉T)
ALK.8.120/60 60 mm 380 ⨉ 20 mm
ALK.8.120/90 90 mm 380 ⨉ 20 mm

Other heights on request.
